蜂鸣器BP1248C-40


所属分类: 压电无源蜂鸣器

产品描述

1.Technical Parameter
Measuring condition
Part shall be measured under a condition (Temperature: 5~35℃, Humidity: 45%~85%R.H., Atmospheric pressure: 860 ~1060hPa) unless the standard condition (Temperature: 25±3℃, Humidity: 60±10%R.H. Atmospheric pressure: 860 ~1060hPa) is regulated to measure.



 1

Resonant Frequency

4000Hz

2

Operating Voltage

1~20 Vp-p

3

Rated Current

Max.3mA , At 4KHz 50% duty Square Wave 5Vp-p

4

Sound Output at 10cm

Min. 75dB, At 4KHz 50% duty Square Wave 5Vp-p

5

Capacitance

12000±30% pF At 1KHz

6

Operating Temperature

-20℃~+70℃

7

Store Temperature

-30℃~+80℃

8

Net Weight

Approx 0.6g

9

RoHS

Yes

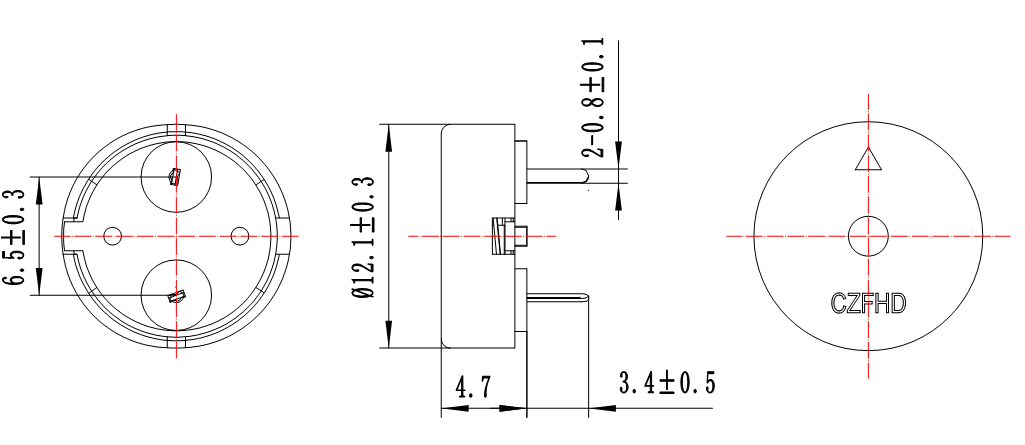

2.Dimensions Unit: mm



*Unit: mm; Tolerance: ±0.5mm Except Specified
*Housing Material: Black PBT

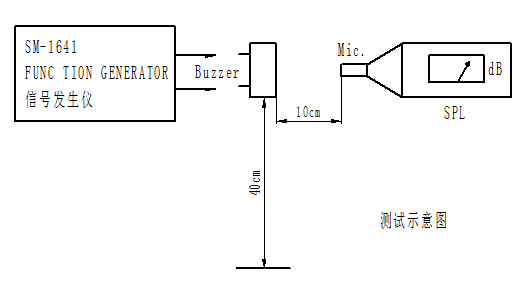

3. Electrical And Acoustical Measuring Condition

Recommended Setting

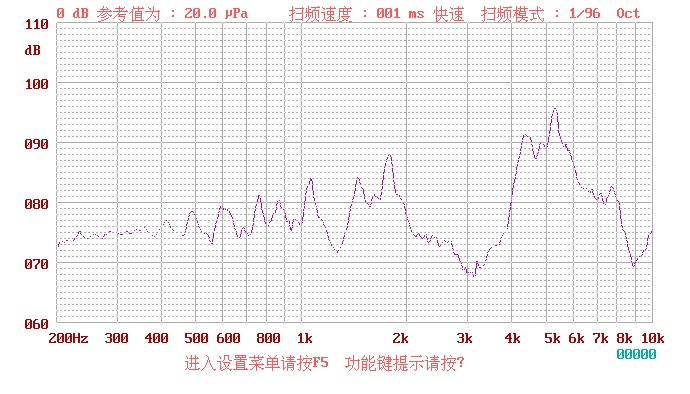

4.Frequency Response



5Vp-p 50% duty Square wave,10cm



5.Reliability Test
After any following tests the part shall meet specifications without any degradation in
appearance and performance except SPL. SPL shall not deviate more than -5 dB
from the initial value
a)Ordinary Temperature Life Test
The part shall be subjected to 96 hours at 25±10℃. Input rated voltage
Resonant frequency, 1/2 duty Square wave.
b)High Temperature Test
The part shall be capable of with standing a storage temperature of +80℃ for 96 hours.
c)Low Temperature Test
The part shall be capable of with standing a storage temperature of -30℃ for 96 hours.
d)Humidity Test
Temperature:+40℃±3℃   Relative Humidity:90%~95% Duration: 48 hours
and expose to room temperature for 6 hours
e)Temperature Shock Test
Temperature:70℃ /1hour→ 25℃/3hours→-20℃/1hour→ 25℃/3hours (1cycle)
Total cycle: 10 cycles
f)Drop Test
Standard Packaging From 75cm(Drop on hard wood or board of 5cm thick,
three sides, six plain.)
g)Vibration Test
Vibration:1000cycles /min. Amplitude:1.5mm, Duration: 1 hour in each 3 axes

Note:
As this product is not protected from foreign material entering, please make sure that any foreign materials (e.g. magnetic powder, washing solvent, flux, corrosive gas) do not enter this product in your production processes. The functional degradation (e.g. SPL down) may occur if foreign material enter it.

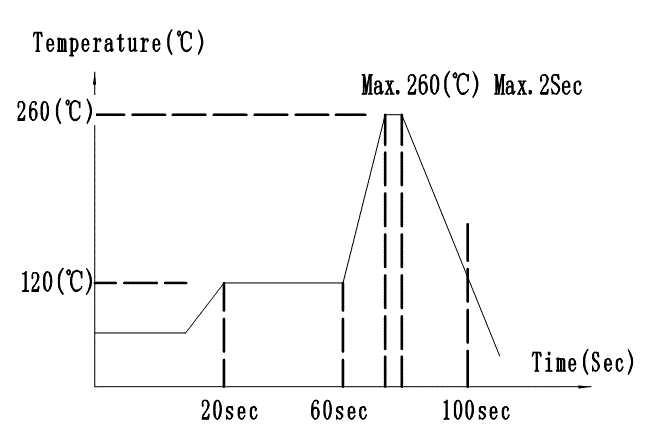

6.Recommended the wave soldering temperature

7.Packing

包装要求

1.泡沫板    200PCS/板     料号:F6-703
2.内盒    2000PCS/盒(10板/盒)     料号:F6-057/F6-058
3.外箱    8000PCS/箱   外箱40.5*40*19.5    4堆装  料号: F6-022
备注:每一盒放10板,上面再放一张空泡沫板
