FHD16-115FPC
类别：
1. Technical Parameter
Measuring condition
| 1 | Resonant frequency | 115 5kHz |
| 2 | Resonant impedance | 260 Ω max. |
| 3 | Static capacitance | 3000±20% PF |
| 4 | Input Voltage | 90VP-P Max. |
| 5 | Test Environment | 23±3 ℃ 40-70% RH |
| 6 | Storage Temperature | -30C-+ 80C |
| 7 | Lifetime | 2000hrs |
2. Dimensions Unit: mm
3. Packaging (Package)
Packaging Requirements |
Boxes (PCS):200*36 Boxes (PCS): 200 packing box (㎜): 275*340*500 packing box (㎜): 150*155*45 |
|
shipping mark requirements |
inner box: according to customer order |
outer box: According to customer order |

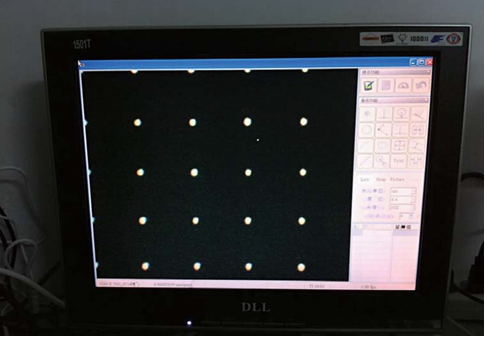

4. Micropore renderings
Instructions for Use:
1. The frequency of the component is only used as a reference value in electrical circuit design and is not recommended as IQC standard;
2. The convex surface of the metal hull is the direction of fog, the concave surface of the metal convex hull is the direction of the liquid inlet;
3. Storage conditions: temperature 5-40 ℃, relative humidity less than 65%;
4. Avoid damage caused by no-load operation of the product;
5. The atomized liquid of the product is normal saline, and the atomization effect of other liquids may not be good.
6. If the ambient humidity is greater than 60%, a certain degree of surface condensation may occur when using the product;
7. The steel sheet is made of SUS316.
Keywords: FHD16-115FPC
