FHDSP3020A

常州富鸿达电子有限公司成立于2010年，生产蜂鸣器，喇叭，报警器，咪头等电声器件，是一家集研发、生产、销售一体的企业。

类别：

Mylar speaker

立即咨询返回

产品详情

1.SPECIFICATION
Speaker

1	Dimension	3020 H 4.1mm
2	Impedance	8Ohm 20% at 1KHz
3	Rated Input Power	0.5W
4	Max Input Power	1.0W
5	Lowest Resonance Frequency	720 20% Hz @ 1V. (Without Baffler)
6	Audible Noise	# the input power shall be set at rated noise power(0.5W). Using an audio oscillator sweep from F0 to 8KHZ in free air. There shall be no buzzes,rattles,nor spurious noises.

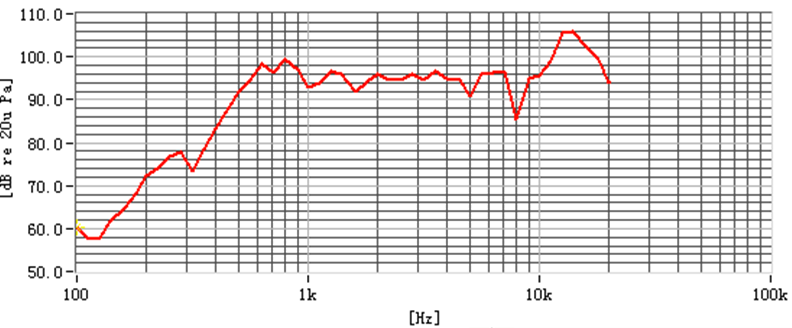

	Sound Pressure Level	92±3dB SPL(0.1m,0.5W) at 1KHz (0dB SPL = 20μPa)
8	Distortion	Less exceeded ≤ 10% at 2.0KHz
9	Operating temperature	-20 ℃ to +60 ℃
10	Store Temperature	-30 ℃ to +70 ℃

2.Dimensions

3.Reliability Test Reliability Test

3.1	High Temperature Test	High Temperature: +70 ℃ 5 ℃ Duration: 96 hours
3.2	Low Temperature Test	Low Temperature: -30 ℃ 5 ℃ Duration: 96 hours
3.3	Humidity Test	Temperature: +40 ℃ 5 ℃ Relative humidity: 90% ~ 96% RH Duration: 96 hours
3.4	Vibration Test	Vibration: 10Hz ~ 500Hz Amplitude: 0.35mm or acceleration : 50m/s2 Duration : 2 h per axis = 10 cycles ; 3 axis
3.5	Temperature Cycle Test	Temperature: -30 ℃ +70 ℃ Duration : 2 hours 2 hours Cycle: 5 Cycle
3.6	Drop Test (under the unit)	Height: 1.0m Cycle: 6 Cycle
3. 7	Load Test	Noise: White noise Power: 0.5W Duration: 96 hours and satisfy the test listed on item 05,08,14.

The test shall be carried out on the parts that passed 12hours in temperature 20℃.
The sensitivity difference from the initial value shall be within ±3dB.

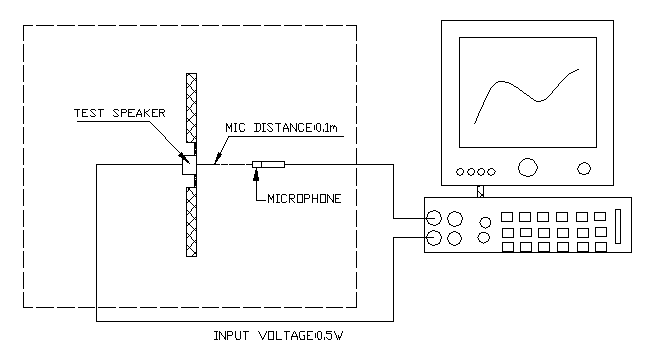

4.Electrical And Acoustical Measuring Condition
