FHDSP57A

零件应在一个条件下（温度：5～35℃，湿度：45%～85%R.H.，大气压：860～1060hPa）进行测量，除非调节标准条件（温度：25±3℃，湿度为60±10%R.H.大气压：860~1060hPa）来进行测量。

所属分类： Mylar 喇叭

在线留言

关键词：蜂鸣器 | 喇叭| 物化片

产品描述

1.SPECIFICATION
Speaker

1	Dimension	Φ57*H8.5
2	Impedance	8Ohm ± 20% at 1.0KHz
3	Rated Input Power	0.5W
4	Max Input Power	1.0W
5	Lowest Resonance Frequency	200±20%Hz
6	Audible Noise	The input power shall be set at rated noise power(0.5W). Using an audio oscillator sweep from F0 to 10KHZ in free air. There shall be no buzzes,rattles,nor spurious noises.
7	Sound Pressure Level	100±3dB SPL(0.1m,0.5W) at 1.0KHz (0dB SPL=20μPa)
8	Distortion	Less exceed≤10% at1.0KHz
9	Operating Temperature	-20℃ to + 60℃
10	Store Temperature	-30℃ to + 70℃

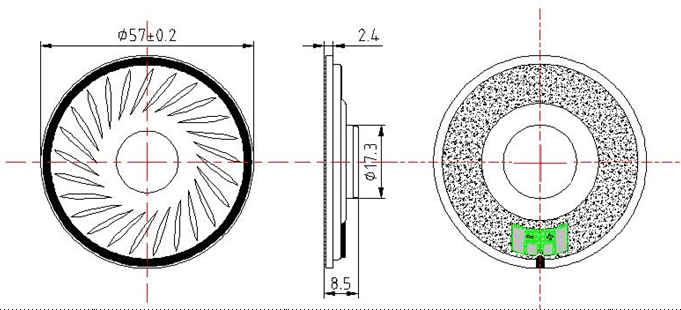

2.Dimensions

*Unit: mm; Tolerance: ±0.3mm Except Specified

3.Reliability Test 可靠性測試

3.1	High Temperature Test	High Temperature: +70℃±5℃ Duration : 96 hours
3.2	Low Temperature Test	Low Temperature: -30℃±5℃ Duration : 96 hours
3.3	Humidity Test	Temperature: +40℃±5℃ Relative humidity: 90%～95% RH Duration : 96 hours
3.4	Vibration Test	Vibration: 10Hz～55Hz Amplitude: 1.5mm or acceleration : 50m/s2 Duration : 2h per axis=10cycles ; 3 axis
3.5	Temperature Cycle Test	Temperature: -20℃ +60℃ Duration : 2 hours 2 hours Cycle: 5 Cycle
3.6	Drop Test (under the unit)	Height: 1.0m Cycle: 10 Cycles
3.7	Load Test	Noise: White noise Power: 0.5W Duration: 96 hours and satisfy the test listed on item 05,08,14.

The test shall be carried out on the parts that passed 12hours in temperature 20℃.
The sensitivity difference from the initial value shall be within ±3dB.

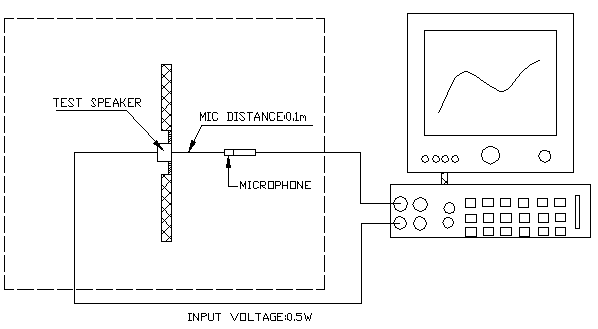

4.Electrical And Acoustical Measuring Condition
