蜂鸣器BPC3633M
蜂鸣器BPC3633M
零件应在一个条件下（温度：5～35℃，湿度：45%～85%R.H.，大气压：860～1060hPa）进行测量，除非调节标准条件（温度：25±3℃，湿度为60±10%R.H.大气压：860~1060hPa）来进行测量。
关键词：蜂鸣器 | 喇叭| 物化片
产品描述
|
APPROVAL SHEET FOR PIEZO BUZZER 常州富鸿达电子有限公司 CHANG ZHOU FHD ELECTRONICS CO., LTD. |
|||||||
|
CLUE No.: |
|
||||||
|
MODEL NUMBER: |
BPC3633M-110V（可调音） |
||||||
|
OUR PART NUMBER: |
|
||||||
|
DOCUMENT No.: |
|
||||||
|
Add: Xujia Industrial Park, ZhenLu Town, Changzhou City, Jiangsu China. 江苏省常州市天宁区郑陆镇工业大道2号 Tel:+86-519-83822009 Fax:+86-519-88739926 Email: sales@czfhd.com; http://www.czfhd.com |
|||||||
|
1. Document revision history |
||||
|
修改时间 |
版本 |
修改页次 |
修改内容 |
确认人 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
2.Technical Parameter Measuring condition Part shall be measured under a condition (Temperature: 5～35℃, Humidity: 45%～85%R.H., Atmospheric pressure: 860 ～1060hPa) unless the standard condition (Temperature: 25±3℃, Humidity: 60±10%R.H. Atmospheric pressure: 860 ～1060hPa) is regulated to measure. |
|
|||
|
1 |
Net Weight |
Approx 22g |
||
|
2 |
Rated Voltage |
110 VDC |
||
|
3 |
Operating Voltage |
65～140 VDC（55VDC以下不响） |
||
|
4 |
Rated Current |
Max.20mA at 110VDC |
||
|
5 |
Sound Output |
Min. 100dB at 110VDC,10cm |
||
|
6 |
Resonant Frequency |
2900±500Hz |
||
|
7 |
Tone |
Continuous |
||
|
8 |
Operating Temperature |
-30℃～+70℃ |
||
|
9 |
Store Temperature |
-40℃～+85℃ |
||
|
3.Dimensions |
Unit: mm Tolerance: ±0.5mm Except Specified |
|||
|
|
||||
|
*Housing Material: Black 无卤PPO 请注意可调出音孔档位放至第四档，如图示。成品55V全检出货 |
||||
|
4. Reliability Test After any following tests the part shall meet specifications without any degradation in appearance and performance except SPL. SPL shall not deviate more than -10 dB from the initial value 4.1 Ordinary Temperature Life Test The part shall be subjected to 96 hours at 25±10℃. Input rated voltage Resonant frequency, 1/2 duty Square wave. 4.2 High Temperature Test The part shall be capable of with standing a storage temperature of +70℃ for 96 hours. 4.3 Low Temperature Test The part shall be capable of with standing a storage temperature of -30℃ for 96 hours. 4.4 Humidity Test Temperature:+40℃±3℃ Relative Humidity:90%～95% Duration: 48 hours and expose to room temperature for 6 hours 4.5 Temperature Shock Test Temperature:70℃ /1hour→ 25℃/3hours→-30℃/1hour→ 25℃/3hours (1cycle) Total cycle: 10 cycles 4.6 Drop Test Standard Packaging From 75cm(Drop on hard wood or board of 5cm thick, three sides, six plain.) 4.7 Vibration Test Vibration:1000cycles /min. Amplitude:1.5mm, Duration: 1 hour in each 3 axes Note: As this product is not protected from foreign material entering, please make sure that any foreign materials (e.g. magnetic powder, washing solvent, flux, corrosive gas) do not enter this product in your production processes. The functional degradation (e.g. SPL down) may occur if foreign material enter it. |
|
|

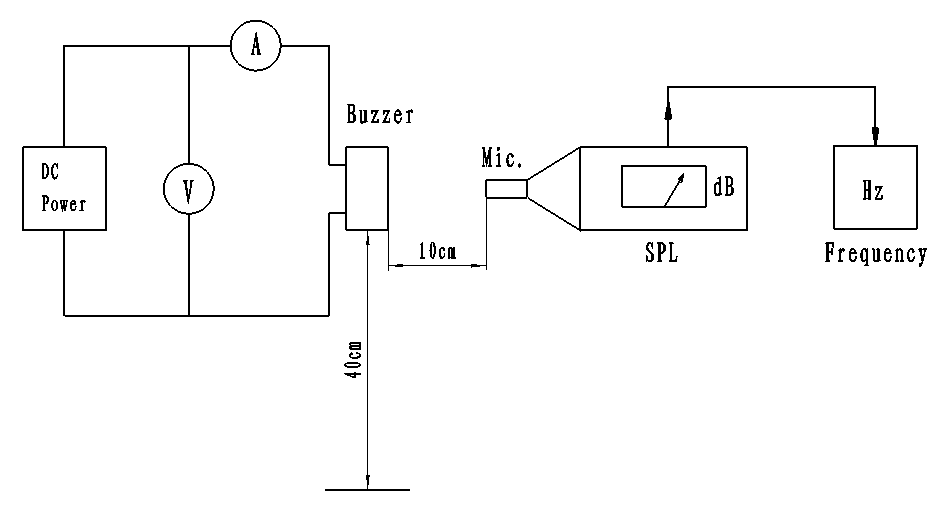

5. Electrical And Acoustical Measuring Condition |
|
|
|
6. Packing
|
包装要求 |
1. 泡沫盒 48PCS/盒 尺寸：37.5*28*5.5（40喇叭用） 2. 外箱 240PCS/箱 (5盒) 尺寸：44*30.5*29
|
泡沫盒 48PCS/盒
外箱 240PCS/箱 （5盒）
