蜂鸣器BP1440S

零件应在一个条件下(温度:5~35℃,湿度:45%~85%R.H.,大气压:860~1060hPa)进行测量,除非调节标准条件(温度:25±3℃,湿度为60±10%R.H.大气压:860~1060hPa)来进行测量。


所属分类: SMD压电无源蜂鸣器
在线留言

关键词:蜂鸣器 | 喇叭| 物化片

产品描述

1.Technical Parameter
Part shall be measured under a condition (Temperature: 5~35℃, Humidity: 45%~85%R.H.,
Atmospheric pressure: 860 ~1060hPa) unless the standard condition (Temperature: 25±3℃,
Humidity: 60±10%R.H. Atmospheric pressure: 860 ~1060hPa) is regulated to measure.



 1

Resonant Frequency

4000Hz

2

Operating Voltage

120 Vp-p

3

Rated Current

Max.3mA ,at 4KHz 50% duty Square Wave 5Vp-p

4

Sound Output at 10cm

Min. 85dB,at 4KHz 50% duty Square Wave 5Vp-p

5

Capacitance

15000±30%pF at 1KHz

6

Operating Temperature

-30℃~+70

7

Store Temperature

-40℃~+85

8

Net Weight

Approx 0.7g

9

RoHS

Yes

10

Weight

Approx 1.8g



2.Dimensions Unit: mm



*Unit: mm; Tolerance: ±0.3mm Except Specified
*Housing Material: Black  PPS

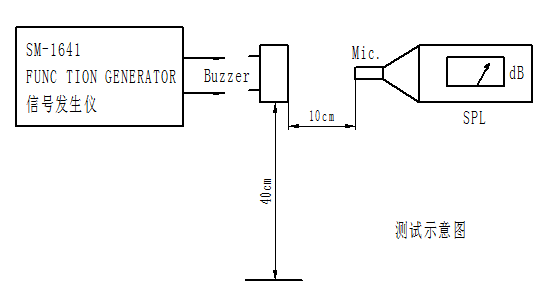

3. Electrical And Acoustical Measuring Condition

Recommended Setting

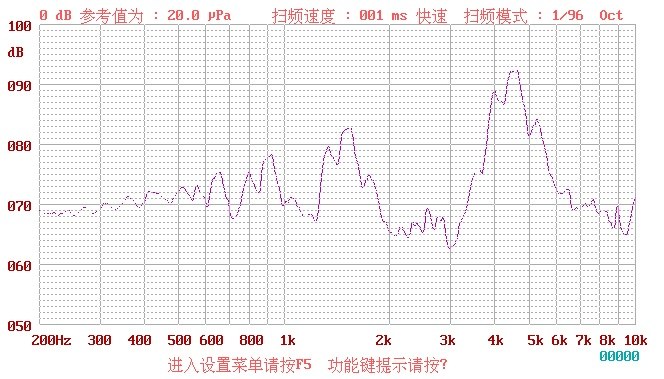

4.Frequency Response



5Vp-p 50% duty Square wave,10cm



5.Surface mounting condition

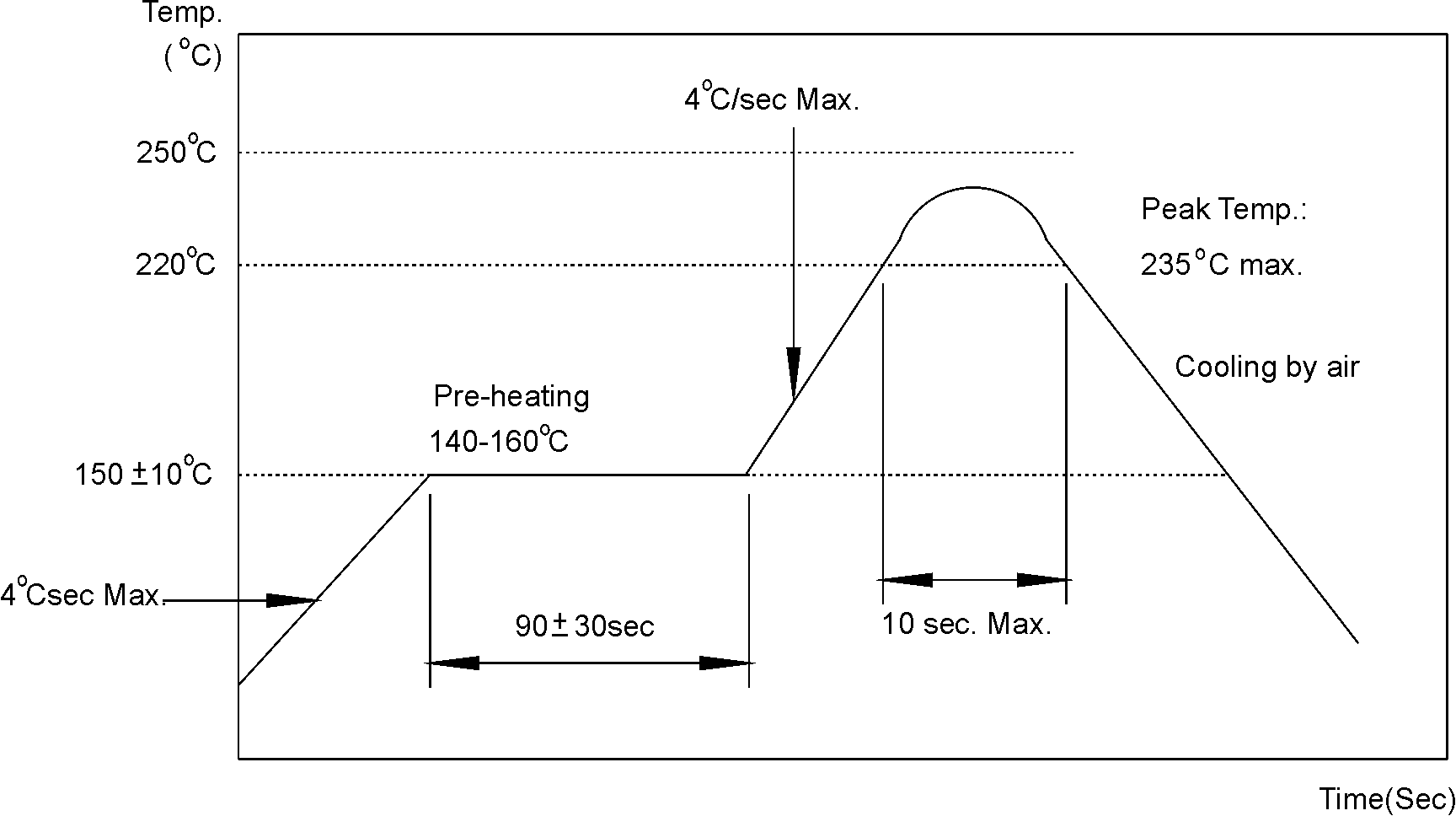

5.1 Reflow soldering
Recommendable reflow soldering condition is as follows.

Note: (1) In automated mounting of the SMD sound transducers on PCB, any bending, expanding and

pulling forces or shocks against the SMD sound transducers shall be kept minimum to prevent them

from electrical failures and mechanical damages of the devices.
(2) In the reflow soldering, too high soldering temperatures and too large temperature Gradient such as

rapid heating or cooling may cause electrical failures and mechanical damages of the devices.



5.2 Soldering pattern



6.Reliability Test
After any following tests the part shall meet specifications without any degradation in
appearance and performance except SPL. SPL shall not deviate more than -10 dB
from the initial value
6.1Ordinary Temperature Life Test
The part shall be subjected to 96 hours at 25±10℃. Input rated voltage
Resonant frequency, 1/2 duty Square wave.
6.2 High Temperature Test
The part shall be capable of with standing a storage temperature of +85℃ for 96 hours.
6.3 Low Temperature Test
The part shall be capable of with standing a storage temperature of -40℃ for 96 hours.
6.4Humidity Test
Temperature:+40℃±3℃   Relative Humidity:90%~95% Duration: 48 hours
and expose to room temperature for 6 hours
6.5Temperature Shock Test
Temperature:60℃ /1hour→ 25℃/3hours→-20℃/1hour→ 25℃/3hours (1cycle)
Total cycle: 10 cycles
6.5Drop Test
Standard Packaging From 75cm(Drop on hard wood or board of 5cm thick,
three sides, six plain.)
6.6Vibration Test
Vibration:1000cycles /min. Amplitude:1.5mm, Duration: 1 hour in each 3 axes
6.7Reflow Test
Use recommendable reflow soldering condition (as shown in 5.1)
(1) No abnormality should be found after reflow
(2) Good soldering to meet soldering requirements


Note:
As this product is not protected from foreign material entering, please make sure that any foreign materials (e.g. magnetic powder, washing solvent, flux, corrosive gas) do not enter this product in your production processes. The functional degradation (e.g. SPL down) may occur if foreign material enter it.
