Buzzer BP4014W

常州富鸿达电子有限公司成立于2010年，生产蜂鸣器，喇叭，报警器，咪头等电声器件，是一家集研发、生产、销售一体的企业。

类别：

Piezoelectric Passive Buzzer

立即咨询返回

产品详情

. Technical Parameter
Measuring condition
Part shall be measured under a condition (Temperature: 5~35 ℃, Humidity: 45% ~ 85% r. h., Atmospheric pressure: 860 ~ 1060hPa) without the standard condition (Temperature: 25±3 ℃, Humidity: 60±10% r. h. Atmospheric pressure: 860 ~ 1060hPa) is regulated to measure.
product testing conditions: temperature: 5~35 ℃, humidity: 45% ~ 85% r. h, air pressure: 860 ~ 1060hPa.
Standard Test Conditions: Temperature: 25±3°C, Humidity: 60±10%R.H. Air Pressure: 860-1060hPa.

1	Resonant Frequency resonant frequency	1 7 50±500Hz
2	Operating Voltage operating voltage	1 ~25 V p -p
3	Rated Current Rated Current	Max. 2 5 mA, at 1 7 50Hz 50% duty Square Wave 12Vp-p
4	Sound Output at 10cm Output Sound Pressure	Min. 9 0dB, at 1 7 50Hz 50% duty square wave 12vp-p
5	Operating Temperature operating temperature	-40±85 ℃
6	Store Temperature storage temperature	-40±85 ℃
7	Net Weight	Approx 16.5g
8	RoHS	Yes

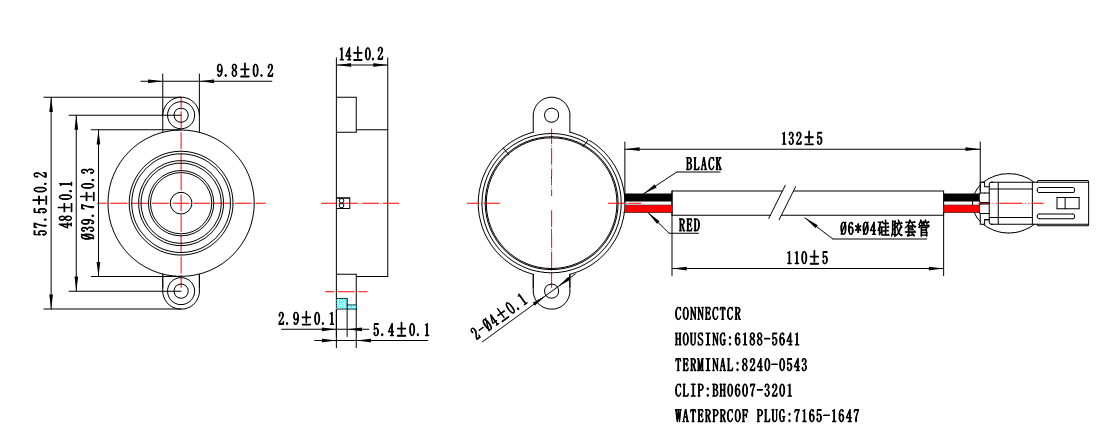

2. Dimensions Unit: mm Tolerance: ±0. 5 mm Except Specified

* Housing Material: PPO
Lead Wire: UL1007 22# Black & Red

3. Electrical And Acoustical Measuring Condition (electrical performance test conditions)

Recommended Setting (test device)

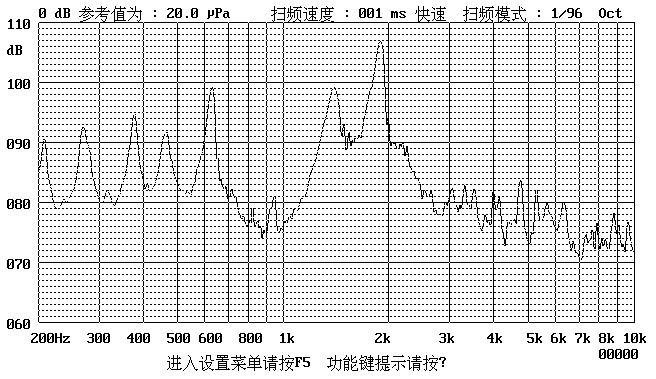

4.Frequency Response (frequency response curve)

12Vp-p 50% duty square wave 10cm

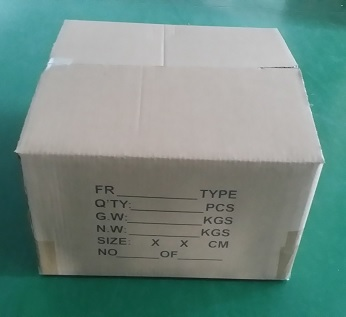

6.Packing

packaging requirements

1.1 PCS/40PCS/plastic bag material number: f6-611
2. Inner box 40 PCS/box material number: F6-051
3. Outer box 8 boxes 320 PCS/box material number: F6-007

6.1 plastic bag, 10 pcs/40 PCS/bag packed and put into inner box
