Buzzer BP2270C

常州富鸿达电子有限公司成立于2010年，生产蜂鸣器，喇叭，报警器，咪头等电声器件，是一家集研发、生产、销售一体的企业。

类别：

Piezoelectric Passive Buzzer

立即咨询返回

产品详情

1. Technical Parameter
Measuring condition
Part shall be measured under a condition (Temperature: 5~35℃, Humidity: 45%~85%R.H., Atmospheric pressure: 860 ~1060hPa) unless the standard condition (Temperature: 25±3℃, Humidity: 60±10%R.H. Atmospheric pressure: 860 ~1060hPa) is regulated to measure.

1	Resonant Frequency	4000 Hz
2	Operating Voltage	1 ~25 V p -p
3	Rated Current	Max. 5 mA , A t 4K Hz 50% duty Square Wave 5 V p -p
4	Sound Output at 10cm	Min. 80 dB , A t 4K Hz 50% duty Square Wave 5 V p -p
5	Capacitance	25000 ±30% pF At 1KHz
6	Operating Temperature	-20 ℃~ +70 ℃
7	Store Temperature	-30 ℃~ +80 ℃
8	Net Weight	Approx 2.0g
9	RoHS	Yes

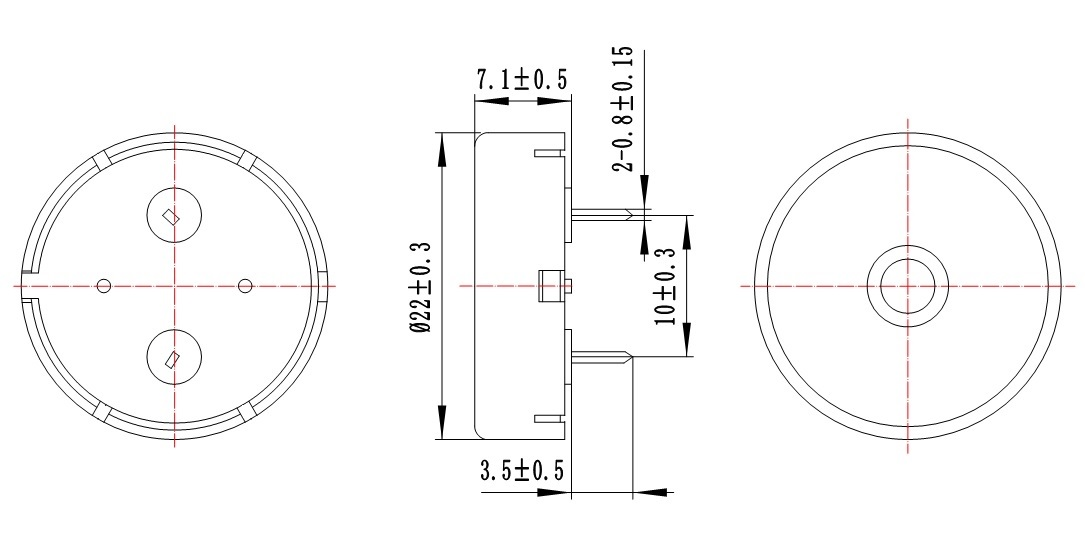

2. Dimensions Unit: mm

*Unit: mm; Tolerance: ±0.5mm Except Specified
*Housing Material: Black PBT

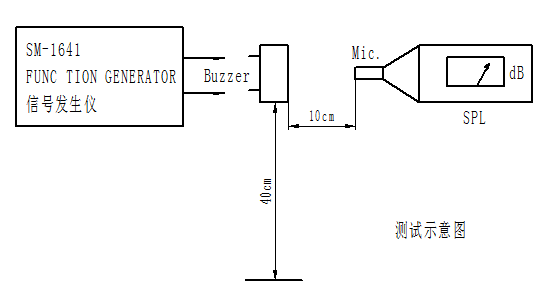

3. Electrical And Acoustical Measuring Condition

Recommended Setting

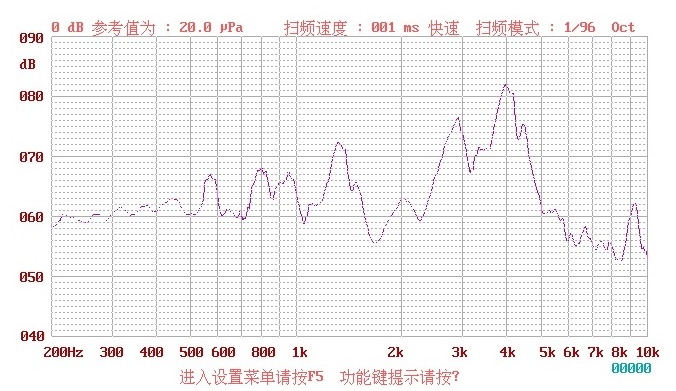

4.Frequency Response

5Vp-p 50% duty Square wave10cm

5.Reliability Test
After any following tests the part shall meet specifications without any degradation in
appearance and performance except SPL. SPL shall not deviate more than -5 dB
from the initial value
5.1Ordinary Temperature Life Test
The part shall be subjected to 96 hours at 25±10℃. Input rated voltage
Resonant frequency, 1/2 duty Square wave.
5.2High Temperature Test
The part shall be capable of with standing a storage temperature of +80℃ for 96 hours.
5. 3Low Temperature Test
The part shall be capable of with standing a storage temperature of -30 ℃ for 96 hours.
5.4Humidity Test
Temperature:+40 ℃ 3 ℃ Relative Humidity:90% ~ 95% Duration: 48 hours
and expend to room temperature for 6 hours
5.5Temperature Shock
Temperature: Test: 60 ℃/1hour → 25 ℃/3hours →-20 ℃/1hour → 25 ℃/3hours (1cycle)
Total cycle: 10 cycles
5.6Drop Test
Standard Packaging From 75cm(Drop on hard wood or board of brthick,
cycle
cycle Amplitude
.247.

x plain): 1.5mm, Duration: 1 hour in each 3 axis

Note:

As this product is not protected from foreign material entering, please make sure that any foreign materials (e.g. magnetic powder, washing solvent, flux, corrosive gas) do not enter this product in your production processes. the functional degradation (e.g. spl down) may occur if foreign material enter it.

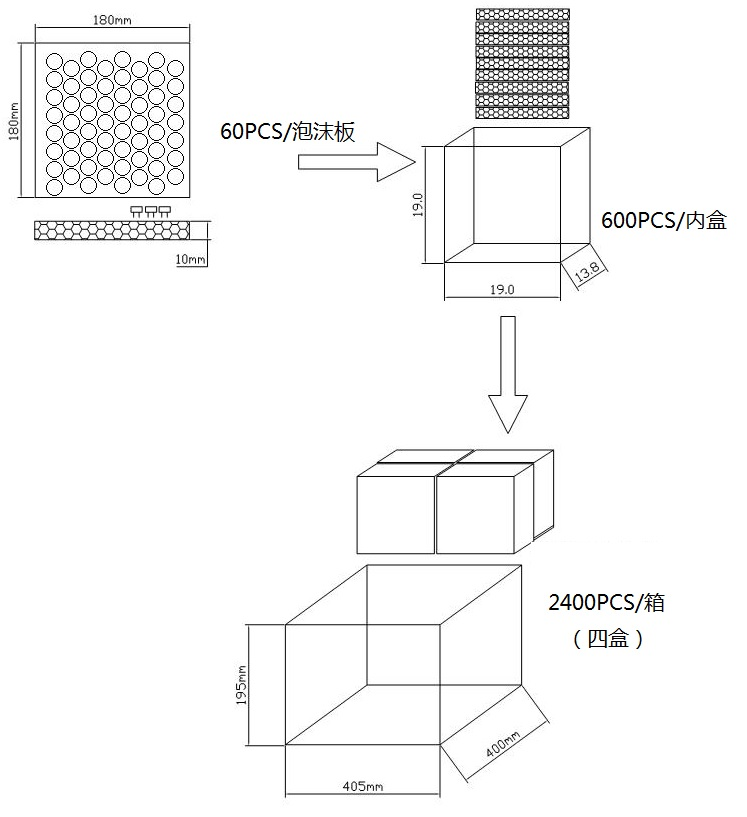

6.Packing3. outer box 2400 PCS/box material number: F6-X-012

packing requirements

1. pearl foam board 60PCS/sheet number: f6-G-027
2. inner box 600 PCS/box material number: F6-H-009/ F6-H-010

shipping requirements

inner box:

according to customer order

outer box:

by customer order
