蜂鸣器BMC9650S
蜂鸣器BMC9650S
零件应在一个条件下(温度:5~35℃,湿度:45%~85%R.H.,大气压:860~1060hPa)进行测量,除非调节标准条件(温度:25±3℃,湿度为60±10%R.H.大气压:860~1060hPa)来进行测量。
关键词:蜂鸣器 | 喇叭| 物化片
产品描述
1.Technical Parameter
Measuring condition
Part shall be measured under a condition (Temperature: 5~35℃, Humidity: 45%~85%R.H., Atmospheric pressure: 860 ~1060hPa) unless the standard condition (Temperature: 25±3℃, Humidity: 60±10%R.H. Atmospheric pressure: 860 ~1060hPa) is regulated to measure.
1 |
Rated Voltage |
5 VDC |
2 |
Operating Voltage |
4-7VDC |
3 |
Rated Current |
Max.30mA ,at 5VDC |
4 |
Sound Output at 10cm |
Min. 85dB,at 5VDC,10cm |
5 |
Resonant Frequency |
2400±300 Hz |
6 |
Tone |
Continuous |
7 |
Operating Temperature |
-20 - + 80℃ |
8 |
Storage Temperature |
-30 - +85℃ |
9 |
RoHS |
Yes |
10 |
Weight |
Approx 0.7g |
2.Dimensions Unit: mm Tolerance: ±0.3mm Except Specified
*Housing Material: Black LCP
3.Reliability Test
After any following tests the part shall meet specifications without any degradation in
appearance and performance except SPL. SPL shall not deviate more than -10 dB
from the initial value
3.1 Ordinary Temperature Life Test
The part shall be subjected to 96 hours at 25±10℃. Input rated voltage
Resonant frequency, 1/2 duty Square wave.
3.2 High Temperature Test
The part shall be capable of with standing a storage temperature of +85℃ for 96 hours.
3.3 Low Temperature Test
The part shall be capable of with standing a storage temperature of -30℃ for 96 hours.
3.4 Humidity Test
Temperature:+40℃±3℃ Relative Humidity:90%~95% Duration: 48 hours
and expose to room temperature for 6 hours
3.5 Temperature Shock Test
Temperature:70℃ /1hour→ 25℃/3hours→-30℃/1hour→ 25℃/3hours (1cycle)
Total cycle: 10 cycles
3.6 Drop Test
Standard Packaging From 75cm(Drop on hard wood or board of 5cm thick,
three sides, six plain.)
3.7 Vibration Test
Vibration:1000cycles /min. Amplitude:1.5mm, Duration: 1 hour in each 3 axes
Note:
As this product is not protected from foreign material entering, please make sure that any foreign materials (e.g. magnetic powder, washing solvent, flux, corrosive gas) do not enter this product in your production processes. The functional degradation (e.g. SPL down) may occur if foreign material enter it.
4. Electrical And Acoustical Measuring Condition |
|
a)Recommended Setting |

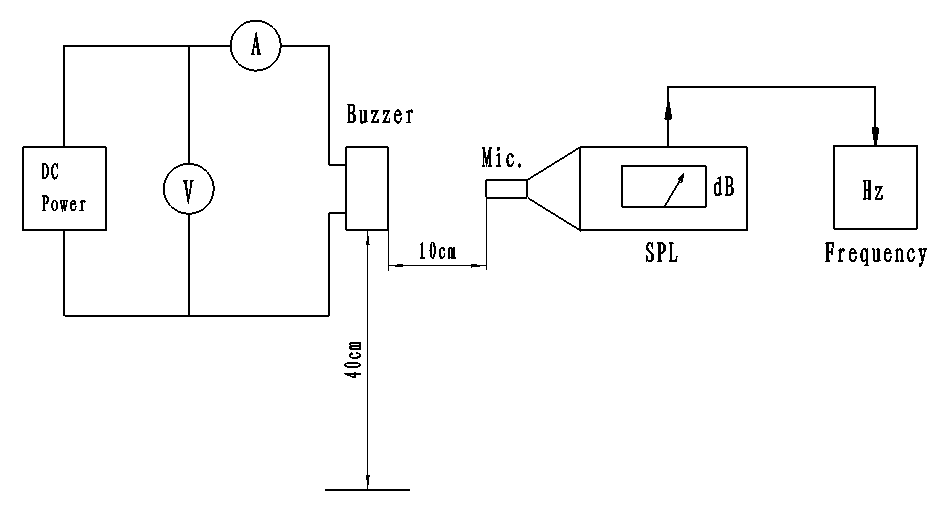

b)Recommended Test Circuit |
5.Surface mounting condition
5.1 Reflow soldering
Recommendable reflow soldering condition is as follows.
Note: (1) In automated mounting of the SMD sound transducers on PCB, any bending, expanding
and pulling forces or shocks against the SMD sound transducers shall be kept minimum
to prevent them from electrical failures and mechanical damages of the devices.
(2) In the reflow soldering, too high soldering temperatures and too large temperature
Gradient such as rapid heating or cooling may cause electrical failures and mechanical
damages of the devices.
5.2 Soldering pattern
6.Packing
包装要求 |

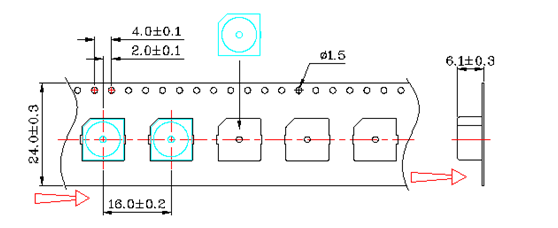

1. BMC9650S用载带, 600PCS/盘 载带料号:F6-S96501 上封带:F6-SF213 2.内盒料号:F6-054;内箱尺寸76*45.5cm 3.外箱料号:F6-005;外箱尺寸35*32*36cm (每个载盘用一个大PE袋装好再放入内盒;PE袋料号:F6-610) |
|
