蜂鸣器BP1710C


+
  • 84.jpg
  • 83.jpg

蜂鸣器BP1710C

零件应在一个条件下(温度:5~35℃,湿度:45%~85%R.H.,大气压:860~1060hPa)进行测量,除非调节标准条件(温度:25±3℃,湿度为60±10%R.H.大气压:860~1060hPa)来进行测量。


所属分类: 压电无源蜂鸣器
在线留言

关键词:蜂鸣器 | 喇叭| 物化片

产品描述

1.Technical Parameter
Measuring condition
Part shall be measured under a condition (Temperature: 5~35℃, Humidity: 45%~85%R.H., Atmospheric pressure: 860 ~1060hPa) unless the standard condition (Temperature: 25±3℃, Humidity: 60±10%R.H. Atmospheric pressure: 860 ~1060hPa) is regulated to measure.

 1

Resonant Frequency

2500±500Hz

2

Operating Voltage

1~25 Vp-p

3

Rated Current

Max.3mA , At 2.5KHz 50% duty Square Wave 3Vp-p

4

Sound Output at 10cm

Min. 80dB, At 2.5KHz 50% duty Square Wave 3Vp-p

5

Capacitance

25000±30% pF At 1KHz

6

Operating Temperature

-20℃~+70℃

7

Store Temperature

-30℃~+80℃

8

Net Weight

Approx 1.4g

9

RoHS

Yes

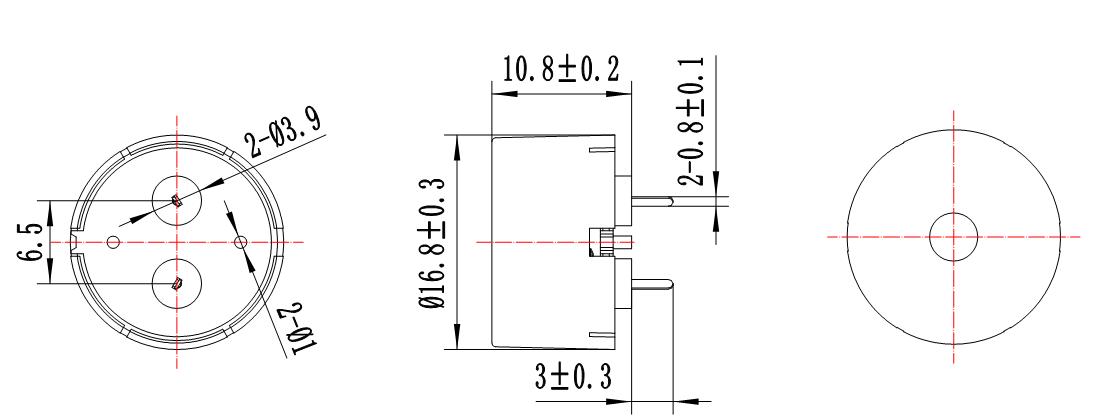

2.Dimensions Unit: mm



*Unit: mm; Tolerance: ±0.5mm Except Specified
*Housing Material: Black PBT



3. Electrical And Acoustical Measuring Condition

Recommended Setting

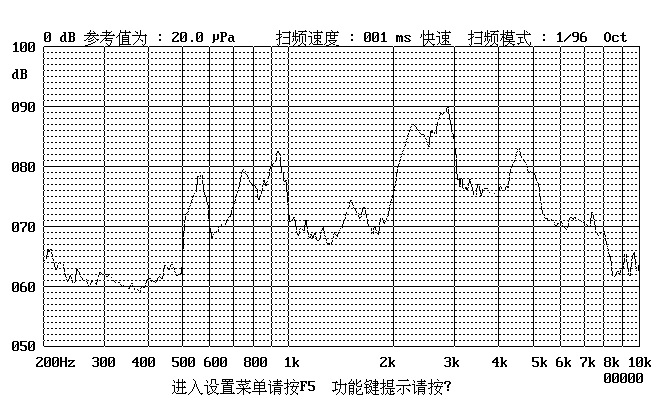

4.Frequency Response


3Vp-p 50% duty Square wave,10cm



5.Reliability Test
After any following tests the part shall meet specifications without any degradation in appearance and performance except SPL. SPL shall not deviate more than -5 dB from the initial value
5.1Ordinary Temperature Life Test
The part shall be subjected to 96 hours at 25±10℃. Input rated voltage Resonant frequency, 1/2 duty Square wave.
5.2High Temperature Test
The part shall be capable of with standing a storage temperature of +80℃ for 96 hours.
5.3 Low Temperature Test
The part shall be capable of with standing a storage temperature of -30℃ for 96 hours.
5.4Humidity Test
Temperature:+40℃±3℃   Relative Humidity:90%~95% Duration: 48 hours
and expose to room temperature for 6 hours
5.5Temperature Shock Test
Temperature:60℃ /1hour→ 25℃/3hours→-20℃/1hour→ 25℃/3hours (1cycle)
Total cycle: 10 cycles
5.6Drop Test
Standard Packaging From 75cm(Drop on hard wood or board of 5cm thick, three sides, six plain.)
5.7Vibration Test
Vibration:1000cycles /min. Amplitude:1.5mm, Duration: 1 hour in each 3 axes

Note:
As this product is not protected from foreign material entering, please make sure that any foreign materials (e.g. magnetic powder, washing solvent, flux, corrosive gas) do not enter this product in your production processes. The functional degradation (e.g. SPL down) may occur if foreign material enter it.



6.Packing

包装 要求

1. 珍珠泡棉板:100PCS/板;  料号:F6-G-027
2. 内盒  1000PCS/盒  上盒料号:F6-H-009  下盒料号:F6-H-010
3. 外箱  4000PCS/箱  料号:F6-X-012  外箱尺寸:40.5*40*19.5cm
4.方便袋 1000PSC/个  料号:F6-D-022   方便袋尺寸:30*47

唛头要求

内盒:

按客户订单

外箱:

按客户订单

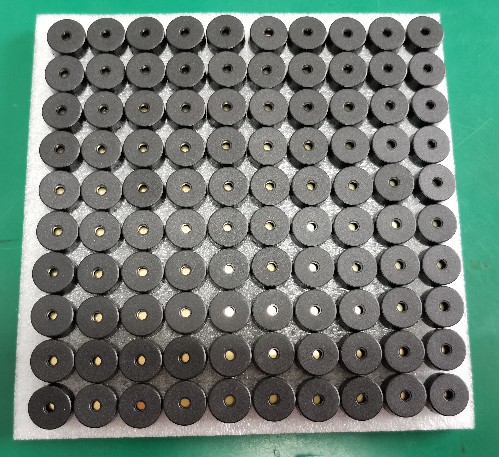

8.1  珍珠棉板包装,产品排列整齐,每排10PCS,每列10PCS


8.2   10板放入内盒,1000PCS/盒


8.3   四盒放入外箱,4000PCS/箱
