喇叭 R1206-32P


+
  • 14.jpg

喇叭 R1206-32P

零件应在一个条件下(温度:5~35℃,湿度:45%~85%R.H.,大气压:860~1060hPa)进行测量,除非调节标准条件(温度:25±3℃,湿度为60±10%R.H.大气压:860~1060hPa)来进行测量。

1. SPECIFICATIONSpeaker 1DimensionΦ12×62Impedance32 ohm ± 15%at1KHz3RatedInputPower20mW4Max.InputPower30mW5AudibleNoiseShouldnotbeaudibleat0.8Vsinewavebetween300Hzto3.4kHz.6SoundPressureLevel110dB±3dB

所属分类: 喇叭
1. SPECIFICATIONSpeaker 1DimensionΦ12×62Impedance32 ohm ± 15%at1KHz3RatedInputPower20mW4Max.InputPower30mW5AudibleNoiseShouldnotbeaudibleat0.8Vsinewavebetween300Hzto3.4kHz.6SoundPressureLevel110dB±3dB
在线留言

关键词:蜂鸣器 | 喇叭| 物化片

产品描述

喇叭分为几种不同的乐器,一种管乐器,上细下粗,多用铜制成。另一种是现代的电声元件,作用是将电信号转换为声音,也叫扬声器。 还可用来形容替人鼓吹、宣传的人。麦拉喇叭其实是一种电能转换成声音的一种转换设备,当不同的电子能量传至线圈时,线圈产生一种能量与磁铁的磁场互动,这种互动造成纸盘振动,因为电子能量随时变化,喇叭的线圈会往前或往后运动,因此喇叭的纸盘就会跟着运动,这此动作使空气的疏密程度产生变化而产生声音。



1. SPECIFICATION

Speaker



1

Dimension

Φ12×6

2

Impedance

32 ohm ± 15% at 1KHz

3

Rated Input Power

20mW

4

Max. Input Power

30mW

5

Audible Noise

Should not be audible at 0.8V sine wave between 300 Hz to 3.4 kHz.

6

Sound Pressure Level

110 dB ±3 dB at 1kHz 179mV with IEC 318 coupler

7

Distortion

Less  then 5 % 1mw/1kHz  For IEC318 coupler& ear cap.

8

Polarity

Diaphragm shall move forward when applies A positive DC. current to the “+” or marked on terminal

9

Operating Temperature

-20℃~+60℃

10

Store Temperature

-30℃~+65℃

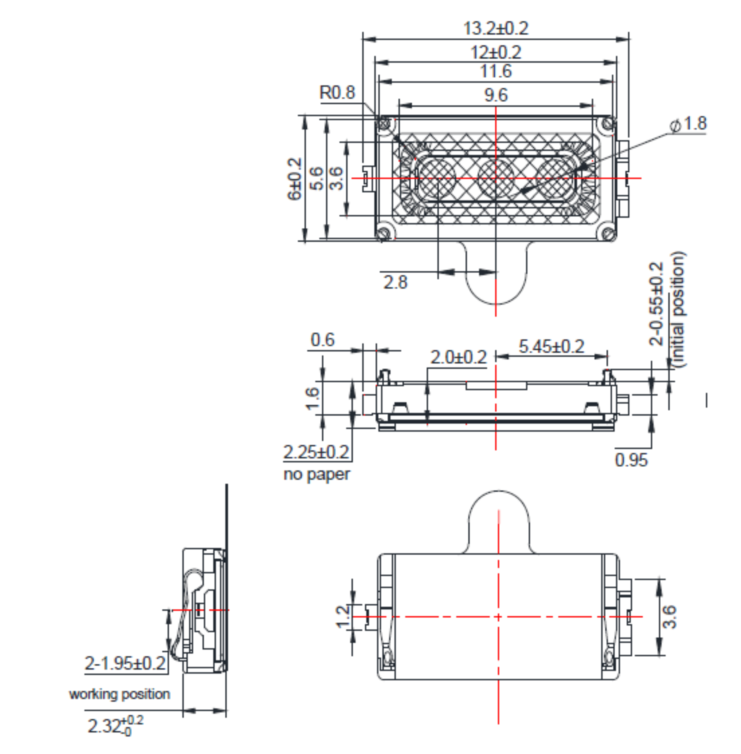

2. D  2. Dimensions

Unit: mm

*Unit: mm; Tolerance: ±0.5mm Except Specified





3. Reliability Test

3.1 Load Test

         Power                                     8V

         Duration                                   96hrs

3.2 High Temperature Test

        Temperature                                +85±3℃

        Duration                                    96hrs

3.3 Low Temperature Test

        Temperature                                -40±3℃

        Duration                                    96hrs

3.4 Damp Heat

        Temperature                                 60±3℃

          Relative Humidity                                   95%RH

        Duration                                    96hrs



3.5 Temperature Cycles                         -40℃(2h)~70℃(2h)-10 cycles



 3.5 Drop Test                                     Normal after droping to concrete floor for 1 m height for 10 times with packing





All these tests above should be measured after leaving normal temperature for 1hrs.

Sensitivity difference at 1kHz shall be within ±3dB from initial value after test.

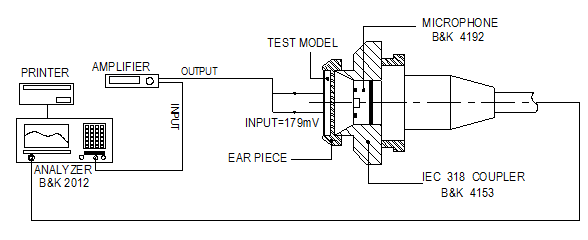

4. Electrical And Acoustical Measuring Condition

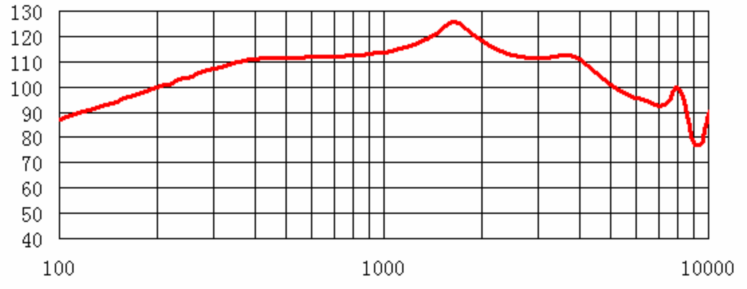

5. Frequency Response



6. PACKING METHOD
