喇叭 S45-04


+
  • 10.1.jpg

喇叭 S45-04

零件应在一个条件下(温度:5~35℃,湿度:45%~85%R.H.,大气压:860~1060hPa)进行测量,除非调节标准条件(温度:25±3℃,湿度为60±10%R.H.大气压:860~1060hPa)来进行测量。

1. SPECIFICATIONSpeaker 1DimensionΦ45*H222Impedance4±15%Ωat 1.0KHz,1.0V3RatedInputPower3.0W4MaxInputPower5.0W5LowestResonanceFrequency150Hz±20% at1.0V6AudibleNoiseMustbefreeaudiblenoisef0~15kHz,Inputl

所属分类: 喇叭
1. SPECIFICATIONSpeaker 1DimensionΦ45*H222Impedance4±15%Ωat 1.0KHz,1.0V3RatedInputPower3.0W4MaxInputPower5.0W5LowestResonanceFrequency150Hz±20% at1.0V6AudibleNoiseMustbefreeaudiblenoisef0~15kHz,Inputl
在线留言

关键词:蜂鸣器 | 喇叭| 物化片

产品描述

1. SPECIFICATION

Speaker



1

Dimension

Φ45*H22

2

Impedance

4±15%Ω at 1.0KHz,1.0V

3

Rated Input Power

3.0W

4

Max Input Power

5.0W

5

Lowest Resonance Frequency

150Hz±20% at 1.0V

6

Audible Noise

Must be free audible noise f0~15kHz, Input level up to 3.46Vrms.

7

Sound Pressure Level

90±3dB/0.1W 0.1M at 0.8,1.0,1.2, 2.0KHz Average

8

Distortion

Less then 8 % at 1kHz 3W.

9

Operating Temperature

-25℃~+60℃

10

Store Temperature

-25℃~+60℃

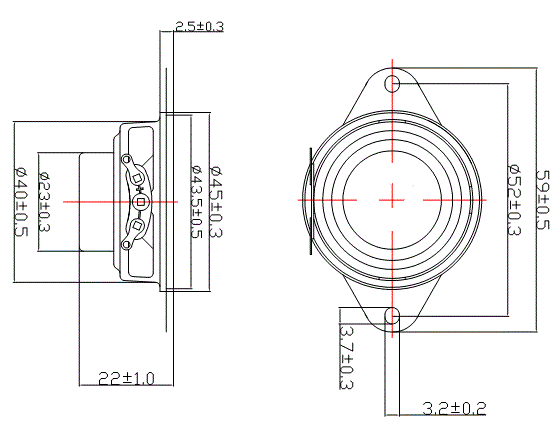

2. D  2. Dimensions

Unit: mm

*Unit: mm; Tolerance: ±0.5mm Except Specified





3.Reliability Test 可靠性測試

3.1

High temperature test

耐热试验

+60±2℃ duration 48 hours ,then removal back to normal temperature for 2 hours.       (+60±2℃,48小时实验后,常温放置2小时。)

3.2

Low temperature test

耐寒试验

-25±3℃ duration 48 hours ,then removal back to normal temperature for 2 hours.      (-25±3℃,48小时实验后,常温放置2小时。)

3.3

Humidity test

耐湿试验

Temperature +40±2℃,relative humidity 90%~95%,duration 48hours,then removal back to normal temperature for 2hours.

(温度+40±2℃,相对湿度90%~95%,48小时实验后,常温放置2小时。)

3.4

Load test

连续负荷试验

Subject samples to White Noise for 48 hours at 3.3V input power must be normal.

   (白噪声3.3V,连续实验48小时后无异常。)

3.5

Temperture cycle test

温度周期试验

Temperature : -25±3℃ to +60±2℃

Duration    : 2 hours     2 hours

Cycle       :5cycle

(温度-25℃2小时转

高温+60℃2小时为一周期,

共试验5周期。)

3.6

Drop test

跌落试验

The speaker shall be dropped 3 times as shown

in the figure and Cacophony must be normal

(如图示3次跌落实验后外观和声音无异常)

3.7

In Sulation resistance

绝缘阻抗

A VOLTAGEOF 100V.d.c shall be applied for 1 min between a terminal and a frame ,after which measurement shall be made.,2 MΩ OR MORE

(D.C.100V,1分钟后端子与支架间2 MΩ以上)

3.8

Vibration test ibration

振动试验(捆包状态)

X,Y,Z axis;10~55~10Hz/1 minute:Amplitude:1.5mm,Endurance:2 hours each plan.

(沿X,Y,Z三轴10~55~10Hz/1分钟,振幅1.5mm各2小时)

3.9

Operating temperature

动作温度

-25℃ TO +60℃

3.10

Storage temperature

储存温度

-25℃ TO +60℃



  All these tests above should be measured after leaving normal temperature for 1hrs.

Sensitivity difference at 1kHz shall be within ±3dB from initial value after test.

以上試驗完畢後必須於常溫狀態下放置1小時再進行檢測。

測試音壓級變化要求1kHz時必須在±3dB以內。

4. Electrical And Acoustical Measuring Condition



5. Frequency Response


6. PACKING METHOD

TBD
