Buzzer BPC2316

1. Technical specifications Product test conditions: temperature: 5~35 ℃, humidity: 45% ~ 85% R.H., air pressure: 860 ~ 1060hPa. Standard test conditions: temperature: 25±3 ° C., humidity: 60±10%R.H. Air pressure: 860-1060hPa. 1 rated voltage 12VDC2 working voltage 6-15VDC3 rated current (mA)Max.30mA,at12VDC4 output sound pressure (dB)10cm Min.95dB,at12VDC5 resonance frequency (Hz)3500±500 Hz6 tone Cont 常州富鸿达电子有限公司成立于2010年，生产蜂鸣器，喇叭，报警器，咪头等电声器件，是一家集研发、生产、销售一体的企业。

类别：

Piezoelectric active buzzer

立即咨询返回

产品详情

1. Technical Parameter
Measuring condition

Part shall be measured under a condition (Temperature: 5~35℃, Humidity: 45% ~ 85%R.H., Atmospheric pressure: 860 ~ 1060hPa) unless the standard condition (Temperature: 25±3℃, Humidity: 60±10%R.H. Atmospheric pressure: 860 ~1060hPa) is regulated to measure.

1	Rated Voltage	12 VDC
2	Operating Voltage	5- 15VDC
3	Rated Current	Max.20mA, at 12VDC
4	Sound Output at 10cm	Min.85dB, at 12VDC
5	Resonant Frequency	3400±500Hz
6	Tone	Continuous
7	Operating Temperature	-20 - +70℃
8	Storage Temperature	-30 - +80℃
9	RoHS	Yes
10	Weight	Approx 3g

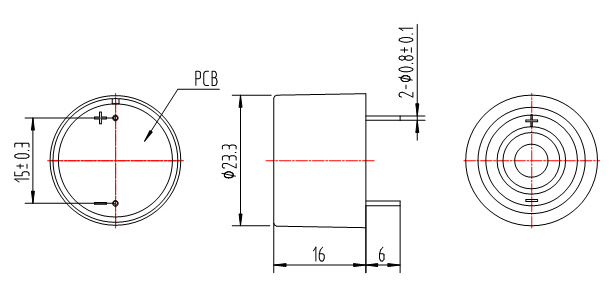

2. Dimensions Unit: mm

*Housing Material: Black PPO

3. Electrical And Acoustical Measuring Condition

Recommended Setting

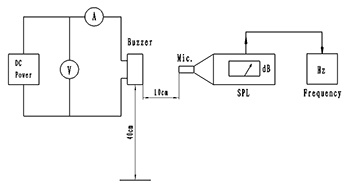

Recommended Test Circuit

4.Reliability Test

After any following tests the part shall meet specifications without any degradation in appearance and performance except SPL. SPL shall not deviate more than -5dB from the initial value
a)Ordinary Temperature Life Test
The part shall be subjected to 96 hours at 25±10℃. Input rated voltage Resonant frequency, 1/2 duty Square wave.
B )High Temperature Test
The part shall be capable of with standing a storage temperature of +80℃ for 96 hours.
c)Low Temperature Test
The part shall be capable of with standing a storage temperature of -30℃ for 96 hours.
d)Humidity Test
Temperature:+40℃±3℃ Relative Humidity:90%~95% Duration: 48 hours and expose to room temperature for 6 hours
e)Temperature Shock Test
Temperature:70℃ /1hour→ 25℃/3hours→-30℃/1hour→ 25℃/3hours (1cycle)
Total cycle: 10 cycles
f)Drop Test
Standard Packaging From 75cm(Drop on hard wood or board of 5cm thick, three sides, six plain.)
g)Vibration Test

Vibration:1000cycles /min. Amplitude:1.5mm, Duration: 1 hour in each 3 axes

Note:

As this product is not protected from foreign material entering, please make sure that any foreign materials (e.g. magnetic powder, washing solvent, flux, corrosive gas) do not enter this product in your production processes. The functional degradation (e.g. spl down) may occur if foreign material enter it.

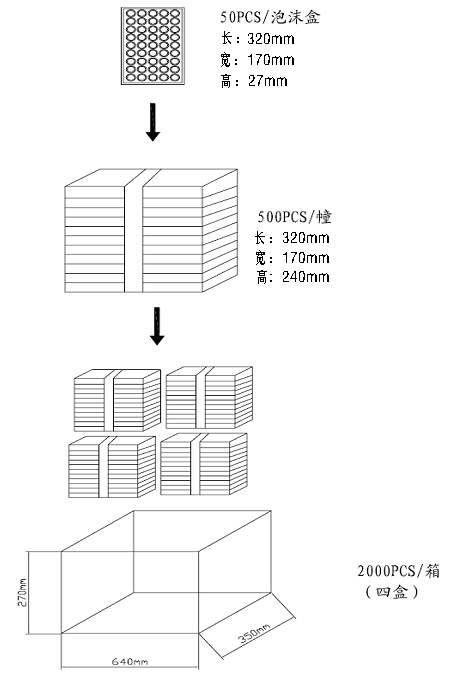

5.Packing

packing requirements

foam box item number: F6-725;500pcs in a pile;
Carton Material Number: f6 -019 carton size 64*35*27cm 2000 pcs/box

shipping mark requirements

inner box:

according to customer order

carton:

according to customer order
