蜂鸣器 BP1325W


+
  • 10.2.jpg
  • 10.3.jpg
  • 10.4.jpg

蜂鸣器 BP1325W

零件应在一个条件下(温度:5~35℃,湿度:45%~85%R.H.,大气压:860~1060hPa)进行测量,除非调节标准条件(温度:25±3℃,湿度为60±10%R.H.大气压:860~1060hPa)来进行测量。


所属分类: 压电无源蜂鸣器
在线留言

关键词:蜂鸣器 | 喇叭| 物化片

产品描述

1.Technical Parameter
Measuring condition

Part shall be measured under a condition (Temperature: 5~35℃, Humidity: 45% ~ 85%R.H., Atmospheric pressure: 860 ~ 1060hPa) unless the standard condition (Temperature: 25±3℃, Humidity: 60±10%R.H. Atmospheric pressure: 860 ~1060hPa) is regulated to measure.

1 Resonant Frequency  4000±500Hz
2 Operating Voltage 1~25 Vp-p
3 Rated Current Max.5mA , At 4.5KHz 50% duty Square Wave 12Vp-p
4 Sound Output at 10cm Min. 80dB, At 4.5KHz 50% duty Square Wave 12Vp- p
5 Capacitance 10000±30% pF At 1KHz
6 Operating Temperature -20℃~+60℃
7 Store Temperature -30℃~+70℃
8 Net Weight Approx 0.4g
9 RoHS Yes

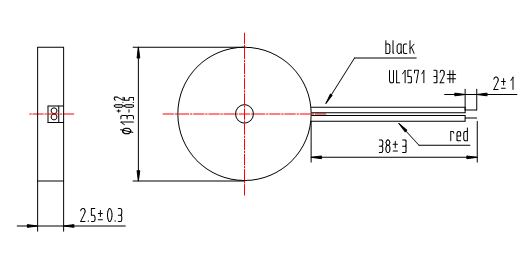

2.Dimensions Unit: mm

*Unit: mm; Tolerance: ±0.5mm Except Specified
*Housing Material: Black PBT

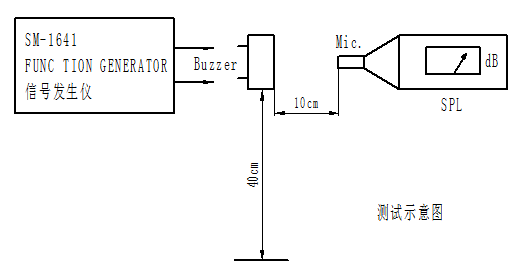

3. Electrical And Acoustical Measuring Condition

Recommended Setting

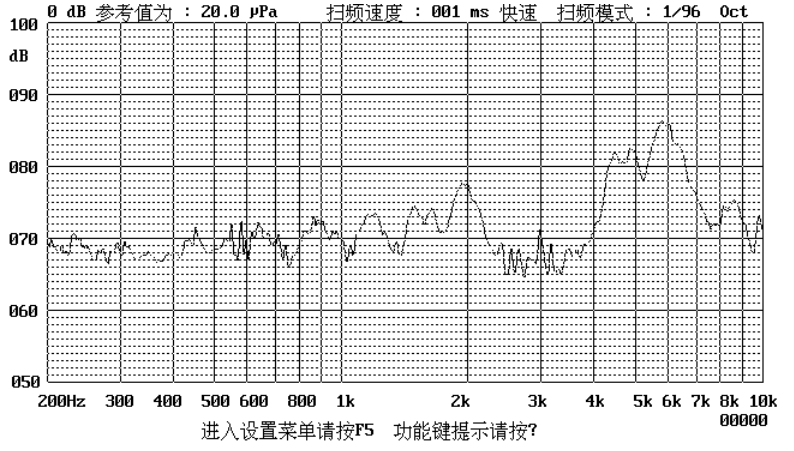

4.Frequency Response



5.Reliability Test

After any following tests the part shall meet specifications without any degradation in appearance and performance except SPL. SPL shall not deviate more than -5dB from the initial value
a)Ordinary Temperature Life Test
The part shall be subjected to 96 hours at 25±10℃. Input rated voltage Resonant frequency, 1/2 duty Square wave.
b)High Temperature Test
The part shall be capable of with standing a storage temperature of +70℃ for 96 hours.
c)Low Temperature Test
The part shall be capable of with standing a storage temperature of -30℃ for 96 hours.
d)Humidity Test
Temperature:+40℃±3℃ Relative Humidity:90%~95% Duration: 48 hours and expose to room temperature for 6 hours
e)Temperature Shock Test
Temperature:60℃ /1hour→ 25℃/3hours→-20℃/1hour→ 25℃/3hours (1cycle)
Total cycle: 10 cycles
f)Drop Test
Standard Packaging From 75cm(Drop on hard wood or board of 5cm thick, three sides, six plain.)
g)Vibration Test
Vibration:1000cycles /min. Amplitude:1.5mm, Duration: 1 hour in each 3 axes



Note:

As this product is not protected from foreign material entering, please make sure that any foreign materials (e.g. magnetic powder, washing solvent, flux, corrosive gas) do not enter this product in your production processes. The functional degradation (e.g. SPL down) may occur if foreign material enter it.



6.Packing



包装 要求

1.用13*19PE袋   500PCS/袋   PE袋料号:F6-603
2.内盒用   63.5*53.5折叠盒     3000PCS/盒   料号:F6-051
3.外箱用    12000PCS/箱(4个折叠盒)料号:F6-004
           外箱尺寸:34*25*25

唛头要求

内盒:

按客户订单

外箱:

按客户订单
