Buzzer BP1470

1. Technical Specification

Product Test Conditions: Temperature: 5~35 ℃, Humidity: 45% ~ 85% R.H., Air Pressure: 860 ~ 1060hPa.

Standard Test Conditions: Temperature: 25±3°C, Humidity: 60±10%R.H. Air Pressure: 860-1060hPa.

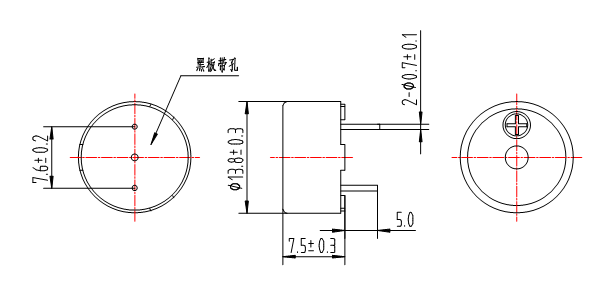

2. Dimension Chart

* Basic Tolerance: unless otherwise noted, the general tolerance is ± 0.5mm

* shell material: black PBT

3. electrical performance test conditions

test device

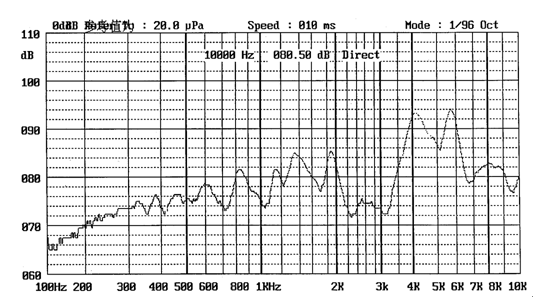

4. frequency response curve

a square wave with a duty cycle of 50% at 5Vp-p, condition

with a test distance of 10cm 5. Reliability Test

shall meet the following standards after any of the following tests. There shall be no defects or attenuation in appearance and electrical performance (except sound pressure), and the sound pressure shall not be lower than 10dB of the minimum sound pressure in the specification.

5.1 Life Test

Place the test piece at a temperature of 25±10 ℃, and input a resonant frequency square wave with a rated voltage and a duty cycle of 1/2 to test for 96 hours.

5.2 High Temperature Test

Place the test piece at +80°C for 96 hours, take it out and place it at room temperature for 3 hours before testing.

5.3 Low Temperature Test

Place the test piece at -30 ℃ for 96 hours, take it out and place it at normal temperature for 3 hours before testing.

5.4 Humidity Test

The test piece was placed at a temperature of +40±3°C and a humidity of 90% to 95% for 48 hours, and then at room temperature for 6 hours before testing.

5.5 Temperature Impact Test

Place the test piece under the following temperature change conditions: 60 ℃ for 2 hours →-20 ℃ for 2 hours (1 cycle), finish one cycle of experiment, and continue the next experiment after 1 hour. The total number of test cycles is 10 cycles.

5.6 Landing Test

Dropped the test piece from a height of 1.2 meters to a thick board or a 5cm thick hardwood board after standard packaging (3 sides and 6 sides of the packaging box).

5.7 Mechanical Vibration Test

Test again according to the following conditions: vibration speed: 1000 times/min; Amplitude: 1.5mm; Time: 1 hour to change one degree of freedom, a total of 3 degrees of freedom.

Note :

Avoid irrelevant materials such as magnetic materials, water-soluble materials, corrosive gases, etc. Because these irrelevant materials will affect the electrical properties of the product.
