报警器 BPC4218W

零件应在一个条件下（温度：5～35℃，湿度：45%～85%R.H.，大气压：860～1060hPa）进行测量，除非调节标准条件（温度：25±3℃，湿度为60±10%R.H.大气压：860~1060hPa）来进行测量。

1.技术规格 产品测试条件：温度：5～35℃，湿度：45%～85%R.H.，气压：860～1060hPa。标准测试条件：温度：25±3℃,湿度：60±10%R.H. 气压：860～1060hPa。1额定电压12VDC2工作电压5–18VDC3额定电流Max.25mA,at12VDC4输出音压Min.95dB@30cm,at12VDC5谐振频率------Hz6音调siren7工作温度-20-+60
所属分类： 蜂鸣器
所属分类： 压电有源蜂鸣器
1.技术规格 产品测试条件：温度：5～35℃，湿度：45%～85%R.H.，气压：860～1060hPa。标准测试条件：温度：25±3℃,湿度：60±10%R.H. 气压：860～1060hPa。1额定电压12VDC2工作电压5–18VDC3额定电流Max.25mA,at12VDC4输出音压Min.95dB@30cm,at12VDC5谐振频率------Hz6音调siren7工作温度-20-+60
在线留言

关键词：蜂鸣器 | 喇叭| 物化片

产品描述

1.Technical Parameter
Measuring condition

Part shall be measured under a condition (Temperature: 5～35℃, Humidity: 45% ～ 85%R.H., Atmospheric pressure: 860 ～ 1060hPa) unless the standard condition (Temperature: 25±3℃, Humidity: 60±10%R.H. Atmospheric pressure: 860 ～1060hPa) is regulated to measure.

1 Rated Voltage 12VDC
2 Operating Voltage 5– 18 VDC
3 Rated Current Max.25mA, at 12VDC
4 Sound Output at 10cm Min.95dB, at 12VDC
5 Resonant Frequency ------Hz
6 Tone siren
7 Operating Temperature -20 - +60℃
8 Storage Temperature -30 - +70℃
9 RoHS Yes
10 Weight Approx 15 g

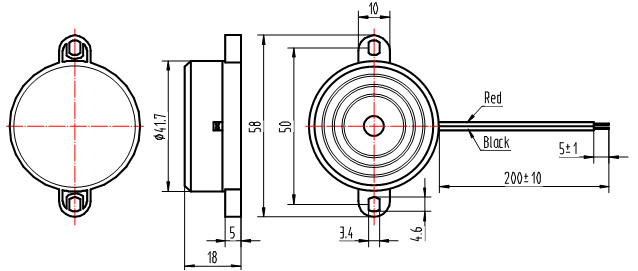

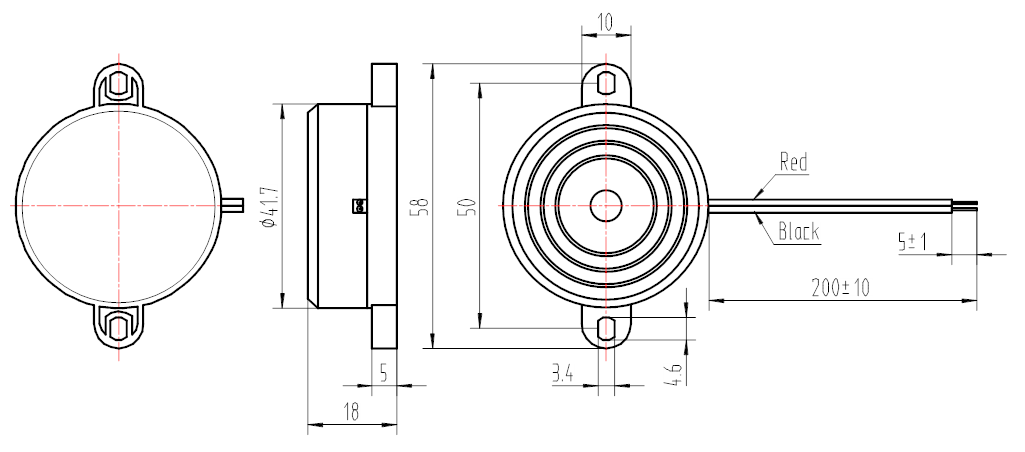

2.Dimensions Unit: mm

* Housing Material: Black ABS
* Wire：UL1007 AWG28#



3. Electrical And Acoustical Measuring Condition

Recommended Setting

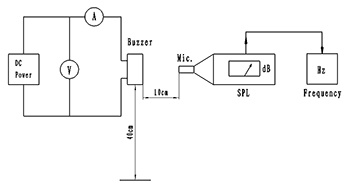

Recommended Test Circuit





4.Reliability Test

After any following tests the part shall meet specifications without any degradation in appearance and performance except SPL. SPL shall not deviate more than -5dB from the initial value
a)Ordinary Temperature Life Test
The part shall be subjected to 96 hours at 25±10℃. Input rated voltage Resonant frequency, 1/2 duty Square wave.
b)High Temperature Test
The part shall be capable of with standing a storage temperature of +80℃ for 96 hours.
c)Low Temperature Test
The part shall be capable of with standing a storage temperature of -30℃ for 96 hours.
d)Humidity Test
Temperature:+40℃±3℃ Relative Humidity:90%～95% Duration: 48 hours and expose to room temperature for 6 hours
e)Temperature Shock Test
Temperature:70℃ /1hour→ 25℃/3hours→-30℃/1hour→ 25℃/3hours (1cycle)
Total cycle: 10 cycles
f)Drop Test
Standard Packaging From 75cm(Drop on hard wood or board of 5cm thick, three sides, six plain.)
g)Vibration Test
Vibration:1000cycles /min. Amplitude:1.5mm, Duration: 1 hour in each 3 axes



Note:

As this product is not protected from foreign material entering, please make sure that any foreign materials (e.g. magnetic powder, washing solvent, flux, corrosive gas) do not enter this product in your production processes. The functional degradation (e.g. SPL down) may occur if foreign material enter it.

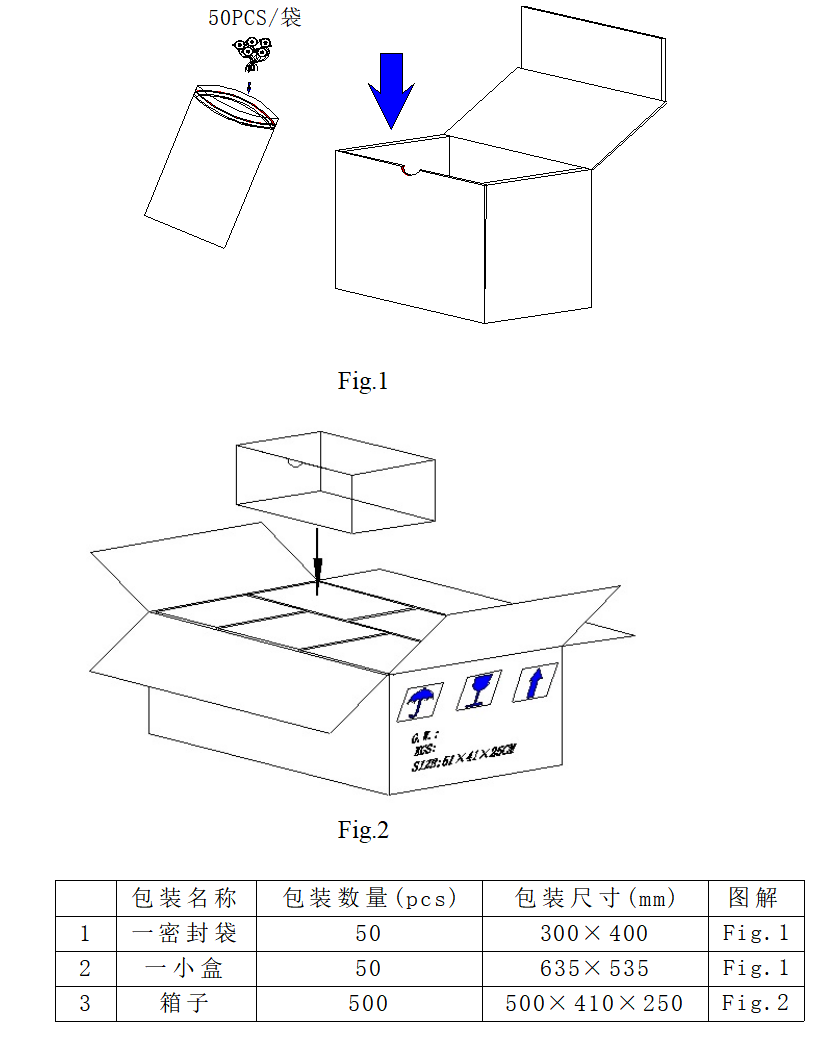

5.Packing



包装 要求

 1.  塑料袋包装   50PCS/袋  10个一扎  塑料袋30*40cm 料号：F6-611
2.  内箱  50PCS/盒    63.5*53.5 cm    料号：F6-051
3.  外箱  500PCS/箱         料号：F6-003   50*41*25 cm

唛头要求

内盒：

按客户订单

外箱：

按客户订单
