蜂鸣器BM9050-0327-16


+
  • BM9050.jpg

蜂鸣器BM9050-0327-16

零件应在一个条件下(温度:5~35℃,湿度:45%~85%R.H.,大气压:860~1060hPa)进行测量,除非调节标准条件(温度:25±3℃,湿度为60±10%R.H.大气压:860~1060hPa)来进行测量。


所属分类: 电磁无源蜂鸣器
在线留言

关键词:蜂鸣器 | 喇叭| 物化片

产品描述

1.Technical Parameter
Measuring condition

Part shall be measured under a condition (Temperature: 5~35℃, Humidity: 45% ~ 85%R.H., Atmospheric pressure: 860 ~ 1060hPa) unless the standard condition (Temperature: 25±3℃, Humidity: 60±10%R.H. Atmospheric pressure: 860 ~1060hPa) is regulated to measure.

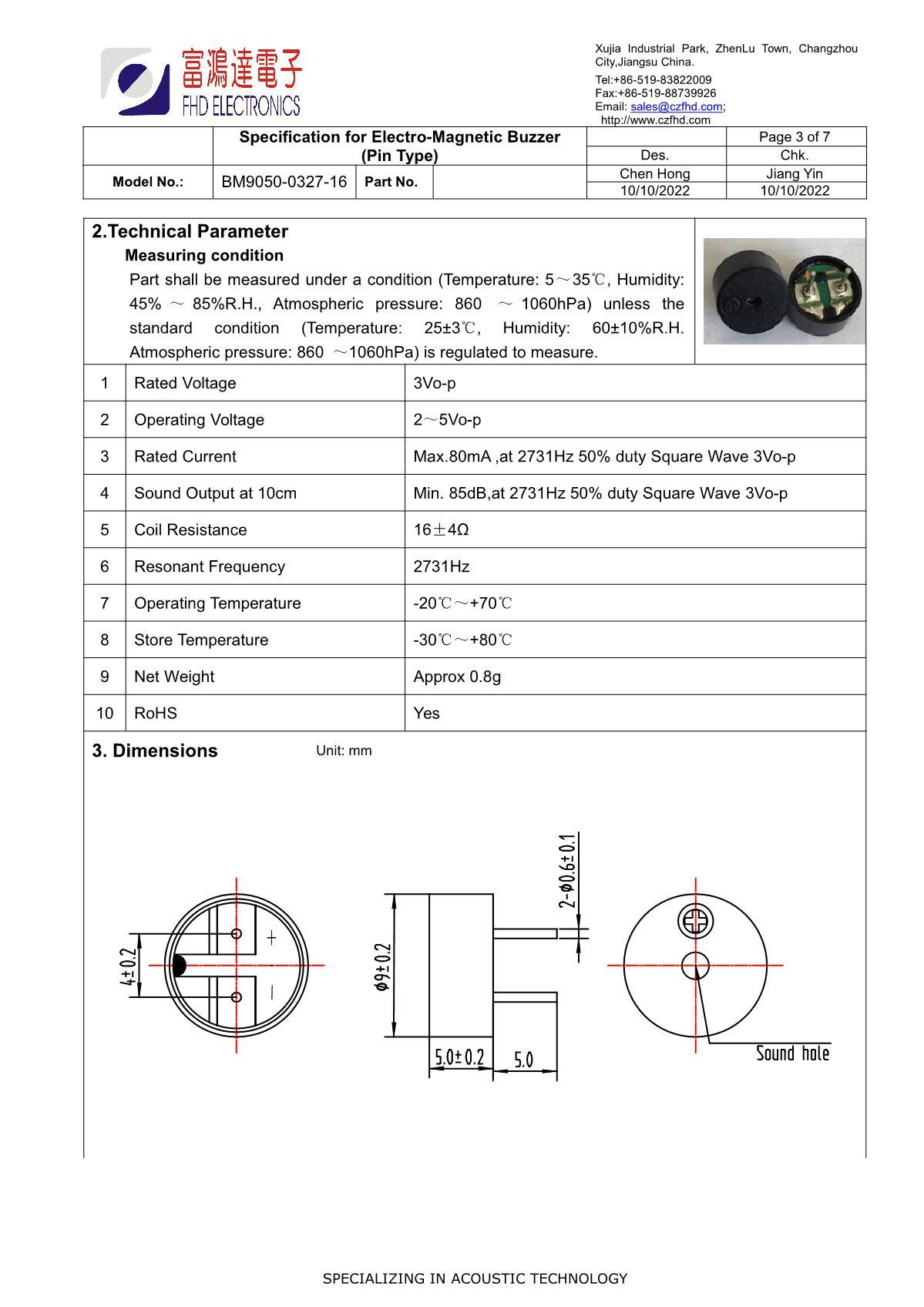

1 Rated Voltage 3Vo-p
2 Operating Voltage 2~5Vo-p
3 Rated Current Max.80mA ,at 2731Hz 50% duty Square Wave 3Vo-p
4 Sound Output at 10cm Min. 85dB,at 2731Hz 50% duty Square Wave 3Vo-p
5 Coil Resistance 16±4Ω
6 Resonant Frequency 2731Hz
7 Operating Temperature -20℃~+70℃
8 Store Temperature -30℃~+80℃
9 Net Weight Approx 0.8g
10 RoHS Yes



2.Dimensions Unit: mm

*Unit: mm; Tolerance: ±0.5mm Except Specified
*Housing Material: Black  PBT



3. Electrical And Acoustical Measuring Condition

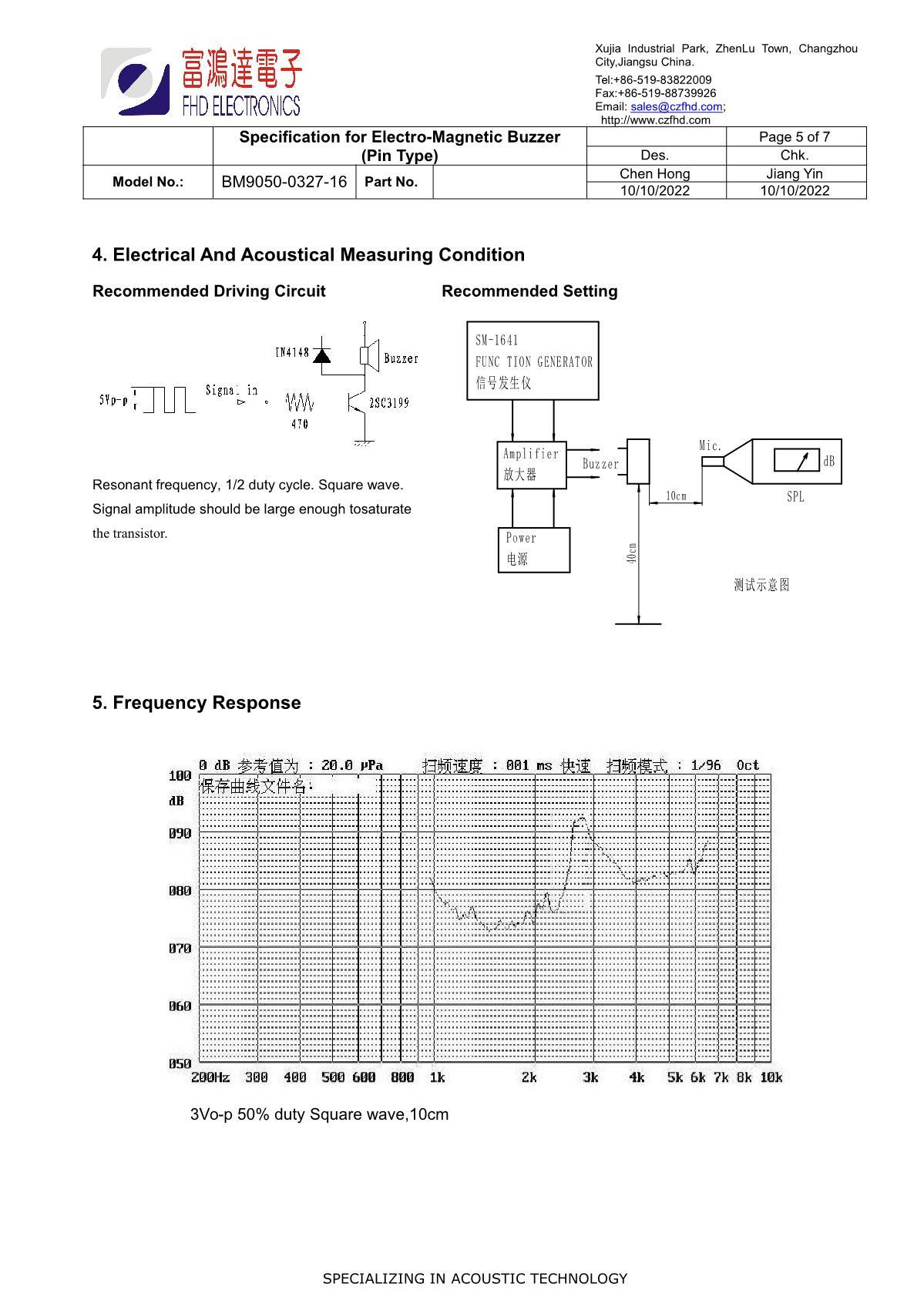

Recommended Driving Circuit

Resonant frequency, 1/2 duty cycle. Square wave.Signal amplitude should be large enough tosaturate the transistor.

Recommended Setting



4.Frequency Response

3Vo-p 50% duty Square wave,10cm

5.Reliability Test

After any following tests the part shall meet specifications without any degradation in appearance and performance except SPL. SPL shall not deviate more than -10 dB from the initial value
a)Ordinary Temperature Life Test
The part shall be subjected to 96 hours at 25±10℃. Input rated voltage Resonant frequency, 1/2 duty Square wave.
b)High Temperature Test
The part shall be capable of with standing a storage temperature of +85℃ for 96 hours.
c)Low Temperature Test
The part shall be capable of with standing a storage temperature of -40℃ for 96 hours.
d)Humidity Test
Temperature:+40℃±3℃ Relative Humidity:90%~95% Duration: 48 hours and expose to room temperature for 6 hours
e)Temperature Shock Test
Temperature:60℃ /1hour→ 25℃/3hours→-20℃/1hour→ 25℃/3hours (1cycle) Total cycle: 10 cycles
f)Drop Test
Standard Packaging From 75cm(Drop on hard wood or board of 5cm thick, three sides, six plain.)
g)Vibration Test
Vibration:1000cycles /min. Amplitude:1.5mm, Duration: 1 hour in each 3 axes



Note:

As this product is not protected from foreign material entering, please make sure that any foreign materials (e.g. magnetic powder, washing solvent, flux, corrosive gas) do not enter this product in your production processes. The functional degradation (e.g. SPL down) may occur if foreign material enter it.

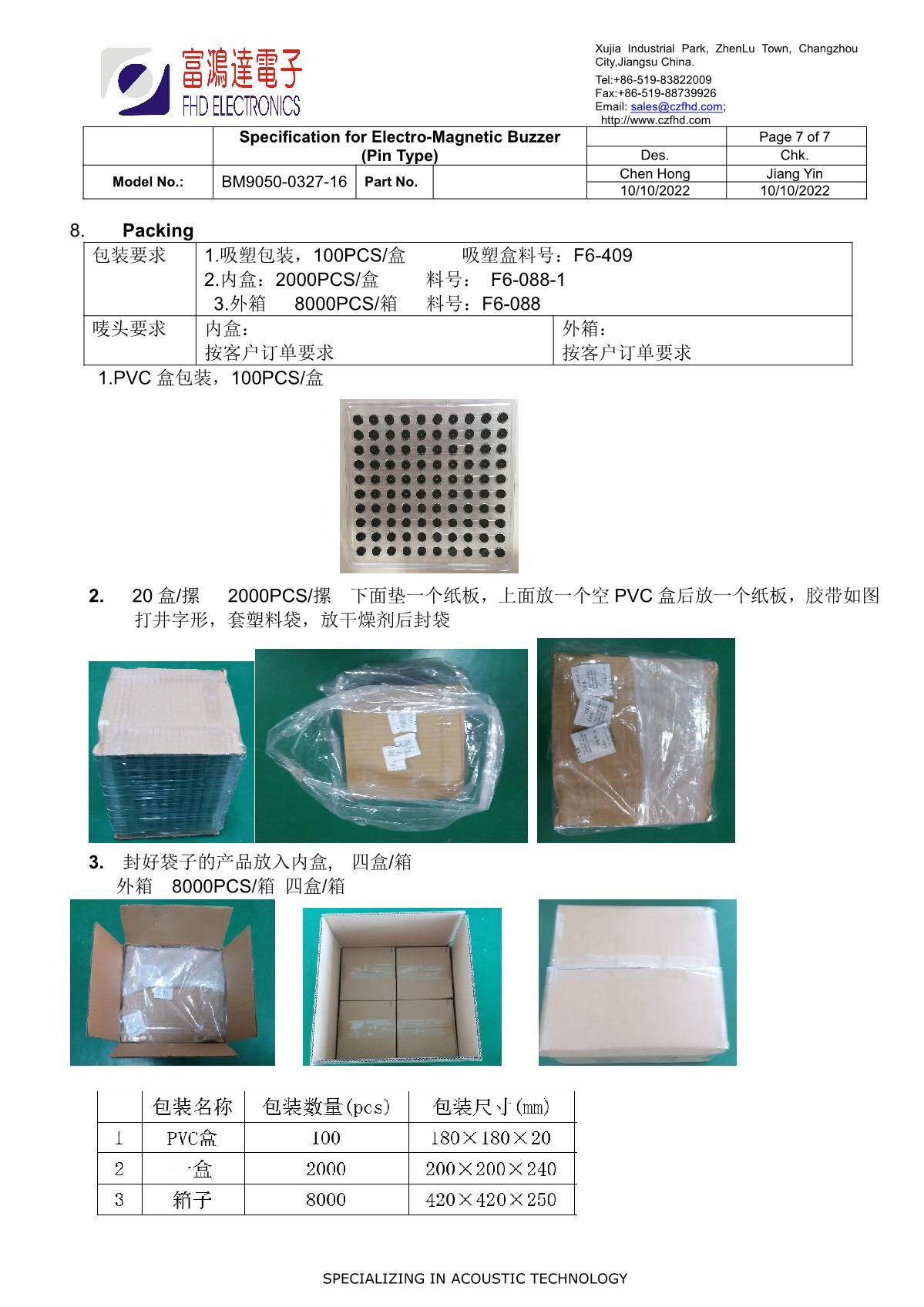

6.Packing



包装 要求

1.吸塑包装,100PCS/盒      吸塑盒料号:F6-409
2.内盒:2000PCS/盒     料号: F6-088-1
3.外箱   8000PCS/箱   料号:F6-088

唛头要求

内盒:

按客户订单

外箱:

按客户订单



1.PVC盒包装,100PCS/盒

  2.   20盒/摞   2000PCS/摞  下面垫一个纸板,上面放一个空PVC盒后放一个纸板,胶带如图打井字形,套塑料袋,放干燥剂后封袋

3.  封好袋子的产品放入内盒,   四盒/箱
外箱  8000PCS/箱 四盒/箱
