Buzzer BM9040E-0327-16

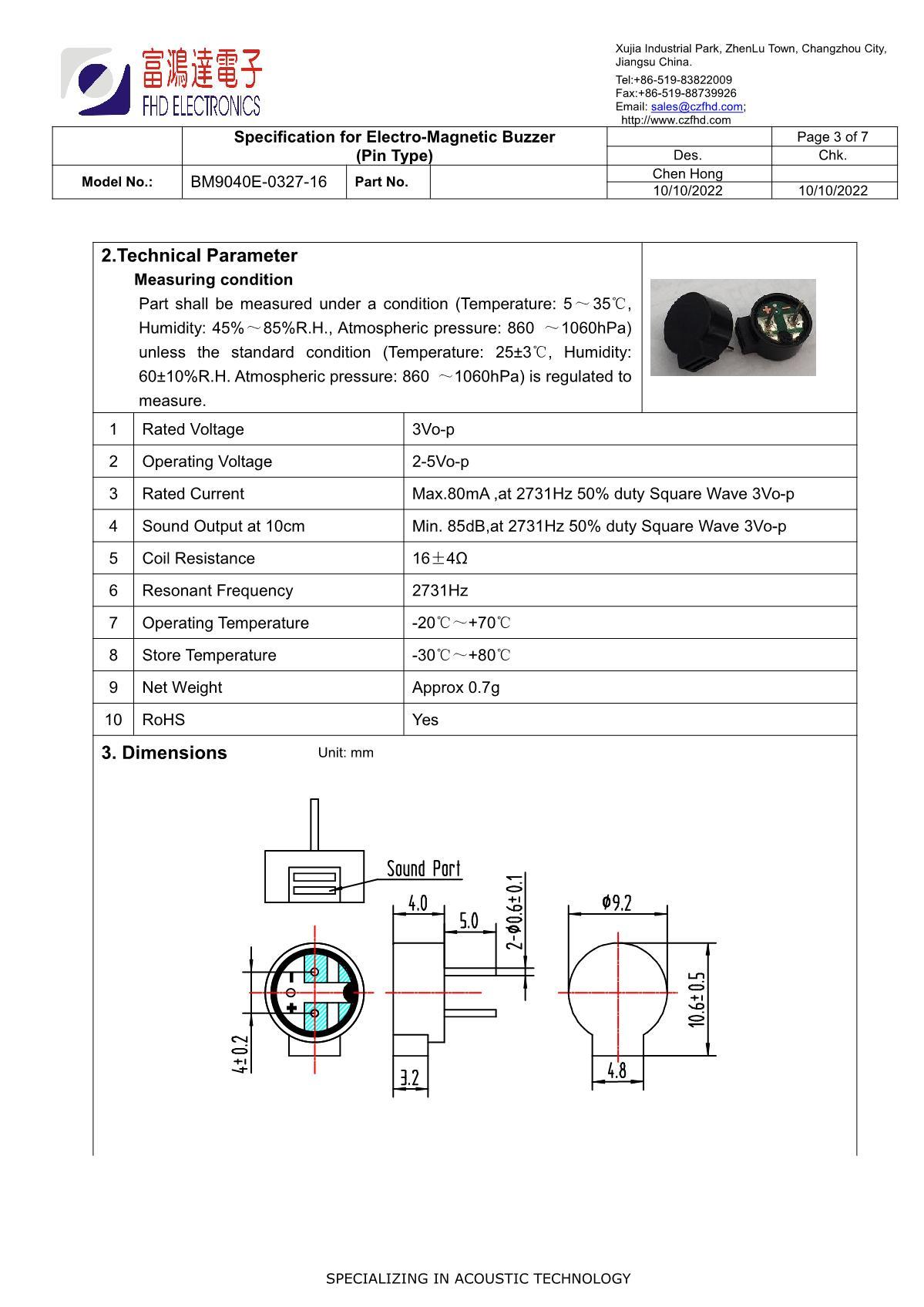

1. Technical Parameter
Measuring condition
Part shall be measured under a condition (Temperature: 5~35℃, Humidity: 45% ~ 85%R.H., Atmospheric pressure: 860 ~ 1060hPa) unless the standard condition (Temperature: 25±3℃, Humidity: 60±10%R.H. Atmospheric pressure: 860 ~1060hPa) is regulated to measure.
| 1 | Rated Voltage | 3Vo-p |
| 2 | Operating Voltage | 2~5Vo-p |
| 3 | Rated Current | Max.80mA ,at 2731Hz 50% duty Square Wave 3Vo-p |
| 4 | Sound Output at 10cm | Min. 85dB,at 2731Hz 50% duty Square Wave 3Vo-p |
| 5 | Coil Resistance | 16±4Ω |
| 6 | Resonant Frequency | 2731Hz |
| 7 | Operating Temperature | -20℃~+70℃ |
| 8 | Store Temperature | -30℃~+80℃ |
| 9 | Net Weight | Approx 0.7g |
| 10 | RoHS | Yes |
2. Dimensions Unit: mm
*Housing Material: Black PBT

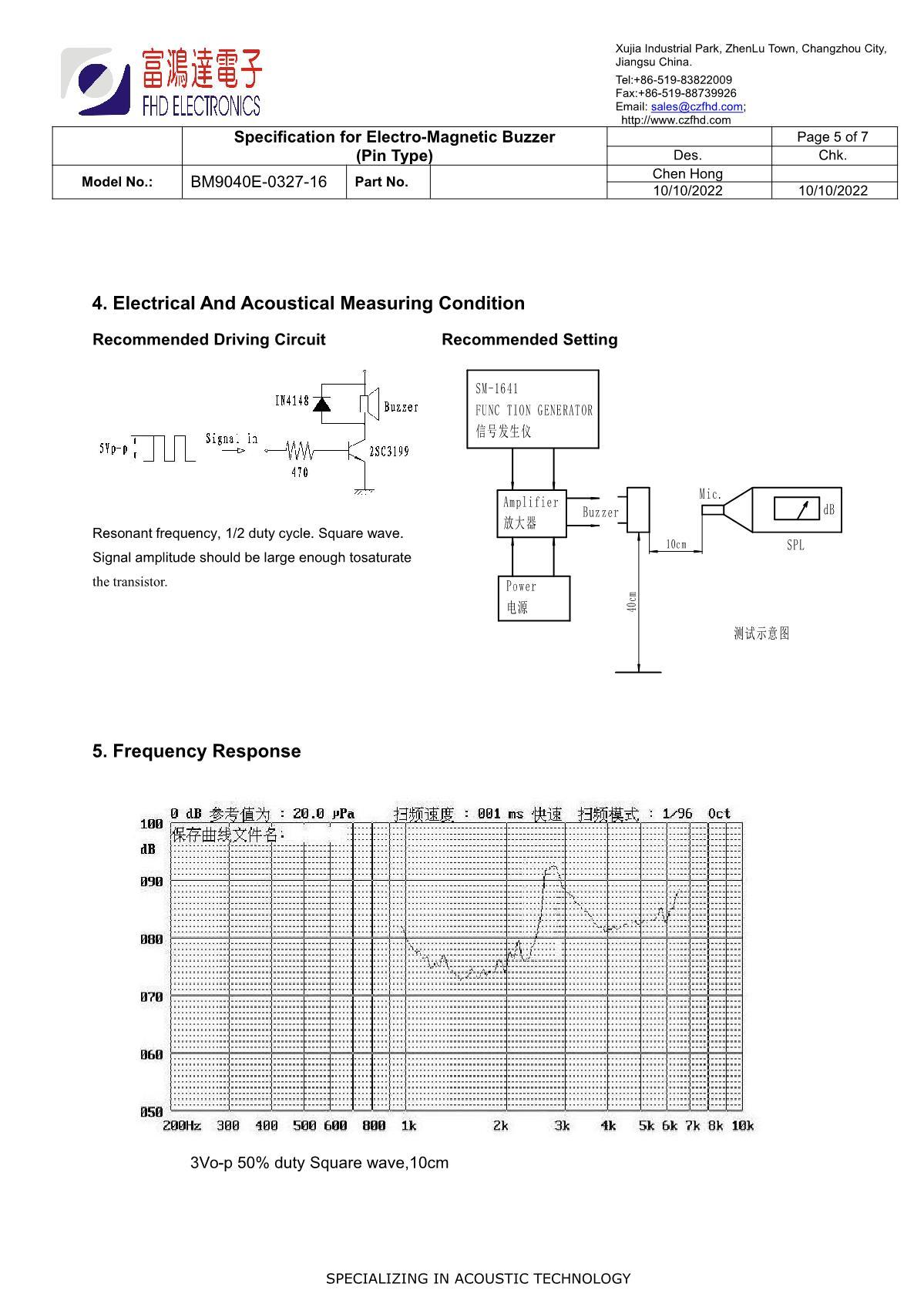

| 3. Electrical And Acoustical Measuring Condition |
Recommended Driving Circuit
Resonant frequency, 1/2 duty cycle. Square wave.Signal amplitude should be large enough tosaturate the transistor. Recommended Setting
|
4.Frequency Response
3Vo-p 50% duty Square wave,10cm

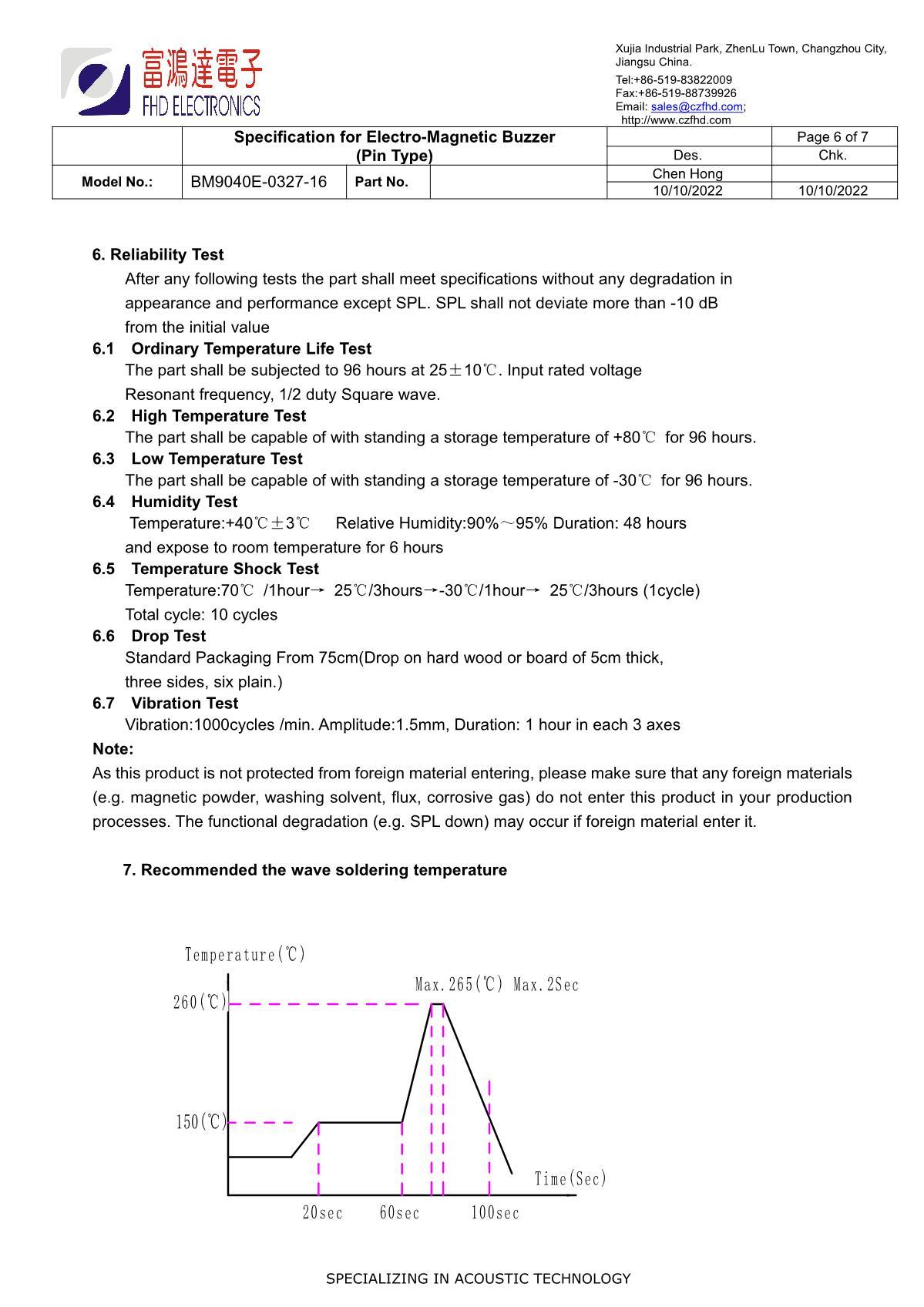

5.Reliability Test
a)Ordinary Temperature Life Test
The part shall be subjected to 96 hours at 25±10℃. Input rated voltage Resonant frequency, 1/2 duty Square wave.
B )High Temperature Test
The part shall be capable of with standing a storage temperature of +85℃ for 96 hours.
c)Low Temperature Test
The part shall be capable of with standing a storage temperature of -40℃ for 96 hours.
d)Humidity Test
Temperature:+40℃±3℃ Relative Humidity:90%~95% Duration: 48 hours and expose to room temperature for 6 hours
e)Temperature Shock Test
Temperature:60℃ /1hour→ 25℃/3hours→-20℃/1hour→ 25℃/3hours (1cycle) Total cycle: 10 cycles
f)Drop Test
Standard Packaging From 75cm(Drop on hard wood or board of 5cm thick, three sides, six plain.)
g)Vibration Test
Note:
As this product is not protected from foreign material entering, please make sure that any foreign materials (e.g. magnetic powder, washing solvent, flux, corrosive gas) do not enter this product in your production processes. the functional degradation (e.g. spl down) may occur if foreign material enter it.

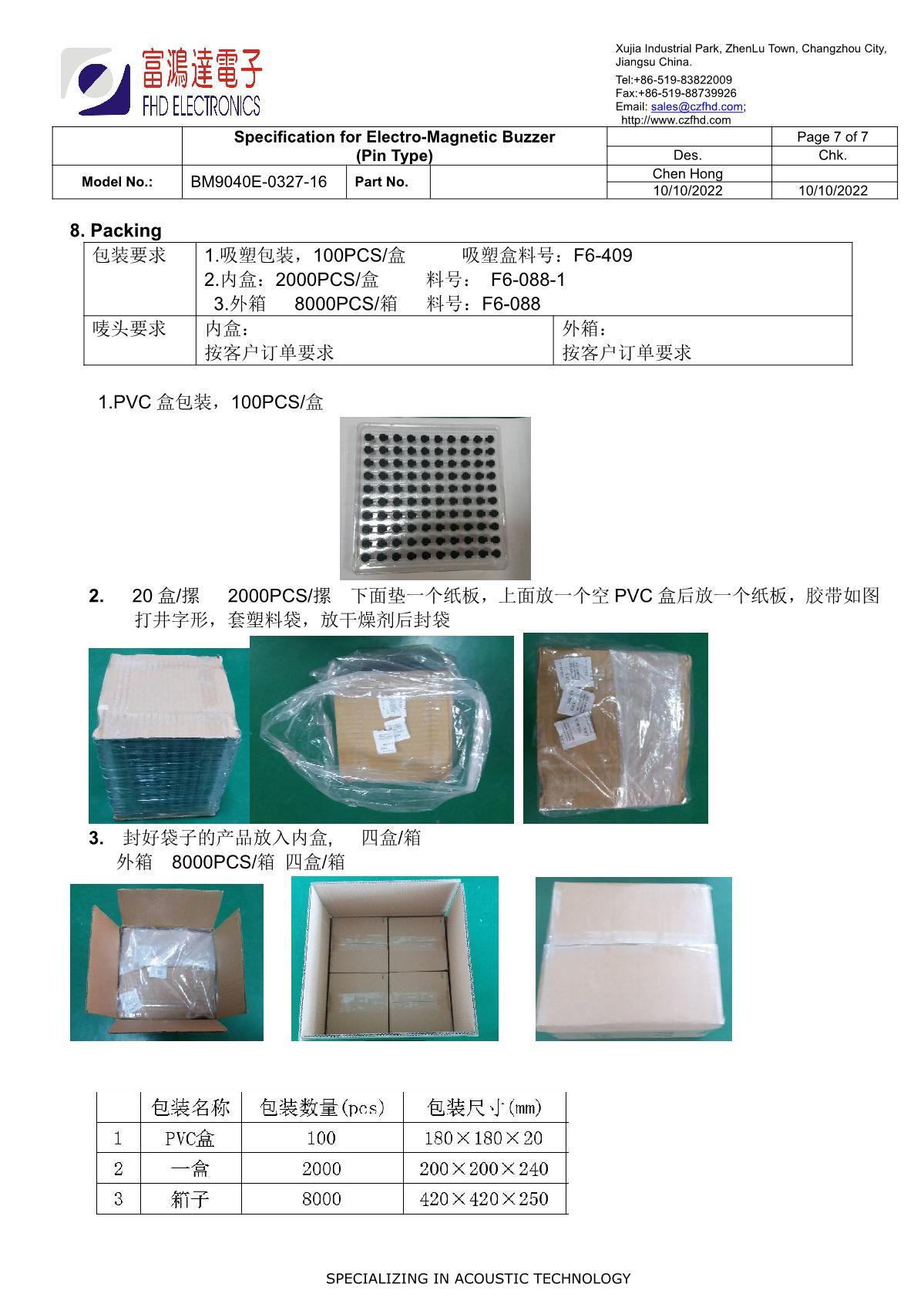

6.Packing
packing requirements |
1. blister packing, 100 PCS/box blister box number: f6-409 2. inner box: 2000 PCS/box material number: F6-088-1 3. outer box: 8000 PCS/box material number: F6-088 |
|
shipping mark requirements |
inner box: according to customer order |
outer box: is packed according to customer order |

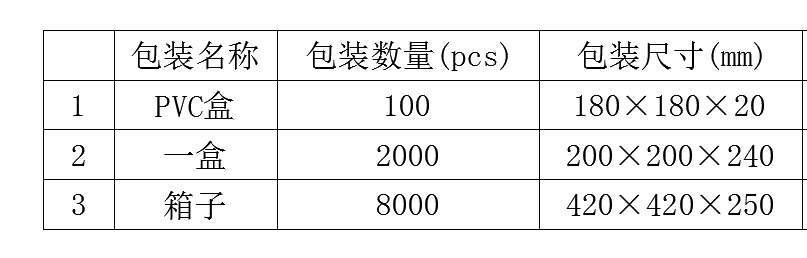

1.PVC box, 100 PCS/box
2.20 boxes/stack of 2000PCS/stack is padded with a cardboard under it, an empty PVC box is placed on it and then a cardboard is placed, the adhesive tape is drilled as shown in the figure, and a plastic bag is set, after putting desiccant, seal the bag
3. put the sealed bag into the inner box, four boxes/box
outer box 8000 PCS/box four boxes/box
