蜂鸣器BM9025S-0327-16

零件应在一个条件下（温度：5～35℃，湿度：45%～85%R.H.，大气压：860～1060hPa）进行测量，除非调节标准条件（温度：25±3℃，湿度为60±10%R.H.大气压：860~1060hPa）来进行测量。

https://m2cdn.fastindexs.com/npmanager/static/img/ai-nofont.a9cda5e139ce27fc8072d2591ff3e34b.png

所属分类： SMD电磁无源蜂鸣器

https://m2cdn.fastindexs.com/npmanager/static/img/ai-nofont.a9cda5e139ce27fc8072d2591ff3e34b.png

在线留言

关键词：蜂鸣器 | 喇叭| 物化片

产品描述

1.Technical Parameter
Measuring condition

Part shall be measured under a condition (Temperature: 5～35℃, Humidity: 45% ～ 85%R.H., Atmospheric pressure: 860 ～ 1060hPa) unless the standard condition (Temperature: 25±3℃, Humidity: 60±10%R.H. Atmospheric pressure: 860 ～1060hPa) is regulated to measure.

1	Rated Voltage	3Vo-p
2	Operating Voltage	2～4Vo-p
3	Rated Current	Max.90mA ,at 2700Hz 50% duty Square Wave 3Vo-p
4	Sound Output at 10cm	Min. 85dB,at 2700Hz 50% duty Square Wave 3.6Vo-p
5	Coil Resistance	16±3Ω
6	Resonant Frequency	2700Hz
7	Operating Temperature	-20℃～+70℃
8	Store Temperature	-40℃～+85℃
9	Net Weight	Approx 0.5g
10	RoHS	Yes

2.Dimensions Unit: mm

*Unit: mm; Tolerance: ±0.3mm Except Specified
*Housing Material: Black LCP
*Terminal plate: 2 soldering pads, tin Plating Brass

3. Electrical And Acoustical Measuring Condition

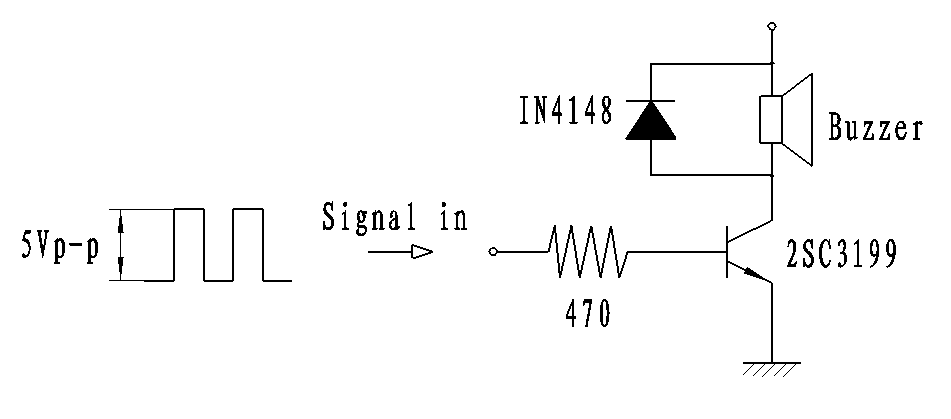

Recommended Driving Circuit

Resonant frequency, 1/2 duty cycle. Square wave.Signal amplitude should be large enough tosaturate the transistor.

Recommended Setting

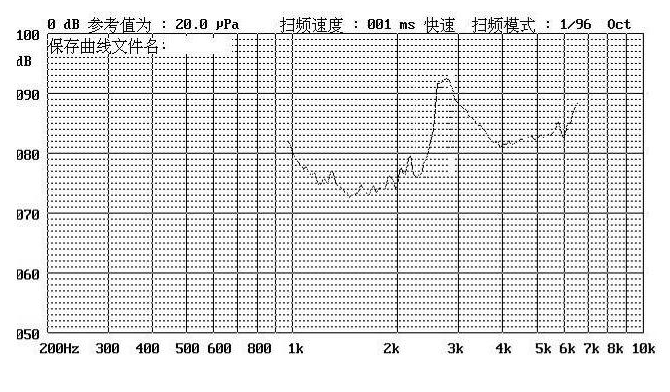

4.Frequency Response

3Vo-p 50% duty Square wave,10cm

5. Surface mounting condition

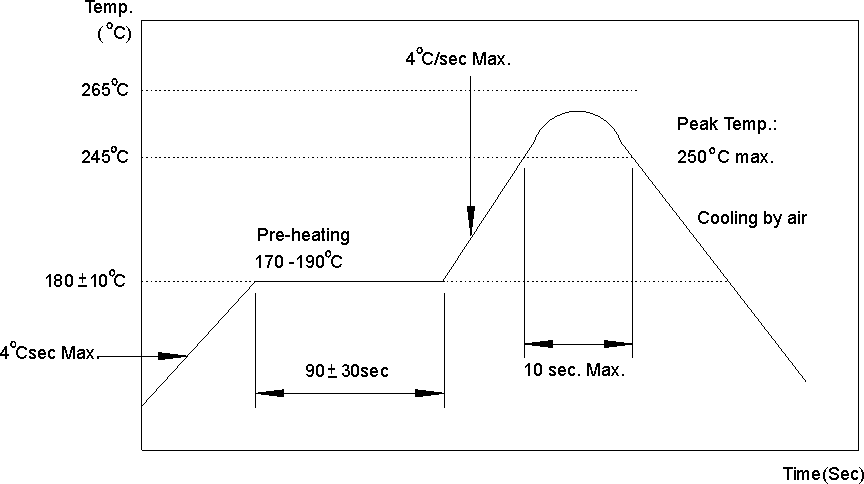

5.1 Reflow soldering

Recommendable reflow soldering condition is as follows.

Note:

(1) In automated mounting of the SMD sound transducers on PCB, any bending, expanding and pulling forces or shocks against the SMD sound transducers shall be kept minimum to prevent them from electrical failures and mechanical damages of the devices.
(2) In the reflow soldering, too high soldering temperatures and too large temperature Gradient such as rapid heating or cooling may cause electrical failures and mechanical damages of the devices.

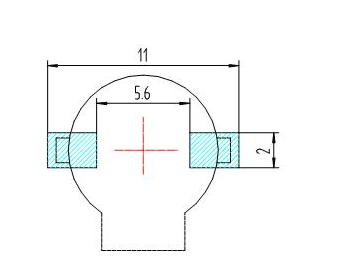

5.2 Soldering pattern

6.Reliability Test

After any following tests the part shall meet specifications without any degradation in appearance and performance except SPL. SPL shall not deviate more than -10 dB from the initial value
a)Ordinary Temperature Life Test
The part shall be subjected to 96 hours at 25±10℃. Input rated voltage Resonant frequency, 1/2 duty Square wave.
b)High Temperature Test
The part shall be capable of with standing a storage temperature of +85℃ for 96 hours.
c)Low Temperature Test
The part shall be capable of with standing a storage temperature of -40℃ for 96 hours.
d)Humidity Test
Temperature:+40℃±3℃ Relative Humidity:90%～95% Duration: 48 hours and expose to room temperature for 6 hours
e)Temperature Shock Test
Temperature:60℃ /1hour→ 25℃/3hours→-20℃/1hour→ 25℃/3hours (1cycle) Total cycle: 10 cycles
f)Drop Test
Standard Packaging From 75cm(Drop on hard wood or board of 5cm thick, three sides, six plain.)
g)Vibration Test

Vibration:1000cycles /min. Amplitude:1.5mm, Duration: 1 hour in each 3 axes

h)Vibration Test
Use recommendable reflow soldering condition (as shown in 5.1)

(1) No abnormality should be found after reflow

(2) Good soldering to meet soldering requirements

Note:

As this product is not protected from foreign material entering, please make sure that any foreign materials (e.g. magnetic powder, washing solvent, flux, corrosive gas) do not enter this product in your production processes. The functional degradation (e.g. SPL down) may occur if foreign material enter it.

6.Packing

包装要求

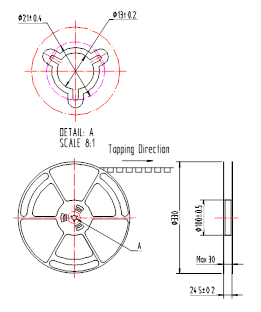

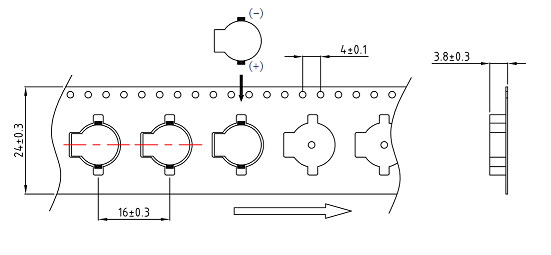

编带包装：详见图纸要求
外箱料号：F6-005；外箱尺寸35*32*36cm
内盒料号：F6-054；内箱尺寸76*45.5cm
载带料号：F6-S90321；上封带：F6-SF213
每个载盘用一个大PE袋装好再放入内盒；PE袋料号：F6-610

唛头要求

内盒：

按客户订单

外箱：

按客户订单
