Buzzer BM8530S-0327-16

常州富鸿达电子有限公司成立于2010年，生产蜂鸣器，喇叭，报警器，咪头等电声器件，是一家集研发、生产、销售一体的企业。

类别：

SMD electromagnetic passive buzzer

立即咨询返回

产品详情

1. Technical Parameter
Measuring condition
Part shall be measured under a condition (Temperature: 5~35℃, Humidity: 45%~85%R.H., Atmospheric pressure: 860 ~1060hPa) unless the standard condition (Temperature: 25±3℃, Humidity: 60±10%R.H. Atmospheric pressure: 860 ~1060hPa) is regulated to measure.

1	Rated Voltage	3.6Vo-p
2	Operating Voltage	2.5~4.5Vo-p
3	Rated Current	Max.100mA ,at 2700Hz 50% duty Square Wave 3.6Vo-p
4	Sound Output at 10cm	Min. 85dB,at 2700Hz 50% duty Square Wave 3.6Vo-p
5	Coil Resistance	16±3Ω
6	Resonant Frequency	2700Hz
7	Operating Temperature	-20℃~+70℃
8	Store Temperature	-40℃~+85℃
9	Net Weight	Approx 0.4g
10	RoHS	Yes

2. Dimensions Unit: mm

*Unit: mm; Tolerance: ±0.3mm Except Specified
*Housing Material: Black LCP
*Terminal plate: 3soldering pads, tin Plating Brass

3. Electrical And Acoustical Measuring Condition

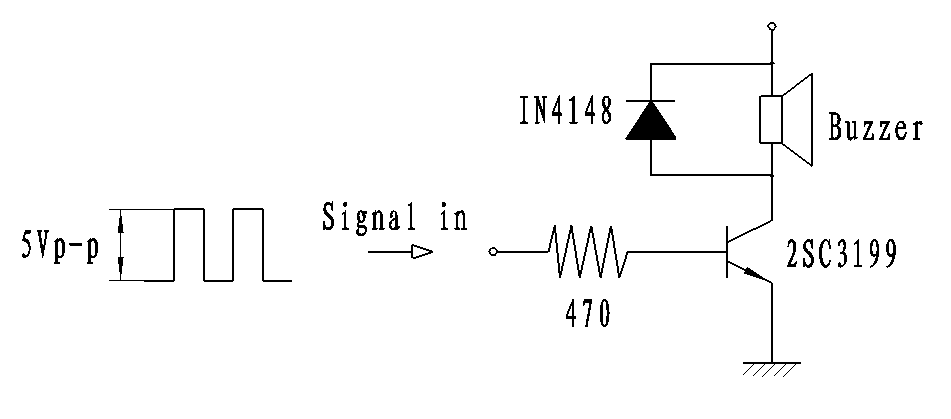

Recommended Driving Circuit

Resonant frequency, 1/2 duty cycle. Square wave.Signal amplitude should be large enough tosaturate the transistor.

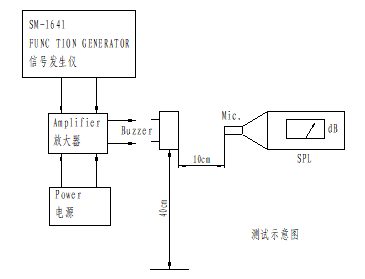

Recommended Setting

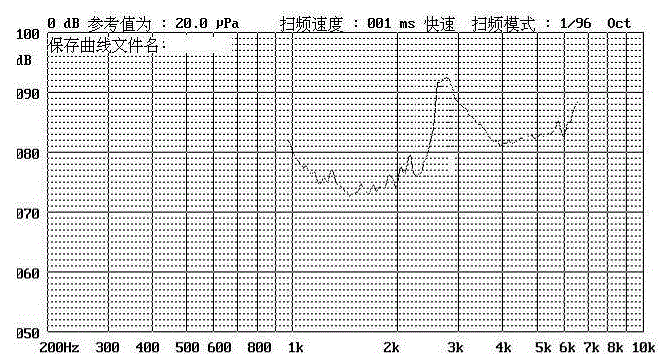

4.Frequency Response

3.6Vo-p 50% duty Square wave,10cm

5. Surface mounting condition

5.1 Reflow soldering

Recommendable reflow soldering condition is as follows.

Note :

(1) In automated mounting of the SMD sound transducers on PCB, any bending, expanding and pulling forces or shocks against the SMD sound transducers shall be kept minimum to prevent them from electrical failures and mechanical damages of the devices.
(2) In the reflow soldering, too high soldering temperatures and too large temperature Gradient such as rapid heating or cooling may cause electrical failures and mechanical damages of the devices.

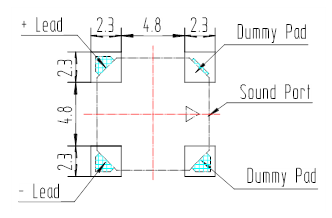

5.2 Soldering pattern

6.Reliability Test

After any following tests the part shall meet specifications without any degradation in appearance and performance except SPL. SPL shall not deviate more than -10 dB from the initial value
a)Ordinary Temperature Life Test
The part shall be subjected to 96 hours at 25±10℃. Input rated voltage Resonant frequency, 1/2 duty Square wave.
B) High Temperature Test
The part shall be capable of with standing a storage temperature of +85 ℃ for 96 hours.
c)Low Temperature Test
The part shall be capable of with standing a storage temperature of -40 ℃ for 96 hours.
d)Humidity Test
Temperature:+40 ℃ 3 ℃ Relative Humidity:90% ~ 95% Duration: 48 hours and exposed to room temperature for 6 hours
e)Temperature Shock Test
Temperature:60 ℃/1hour → 25 ℃/3hours →-20 ℃/1hour → 25 ℃/3hours (1cycle) Total cycle: 10 cycles
f)Drop Test
Standard Packaging From 75cm(Drop on hard wood or board of 5cm thick, three sides, six plain.)
g)Vibration Test
Vibration:1000cycles /min. Amplitude:1.5mm, Duration: 1 hour in each 3 axes

h)Vibration Test
Use recommendable reflow soldering condition (as shown in 6.1)

(1) No abnormality should be found after reflow

(2) Good soldering to meet soldering requirements

Note:
As this product is not protected from foreign material entering, please make sure that any foreign materials (e.g. magnetic powder, washing solvent, flux, corrosive gas) do not enter this product in your production processes. the functional degradation (e.g. spl down) may occur if foreign material enter it.

6.Packing

packing requirements

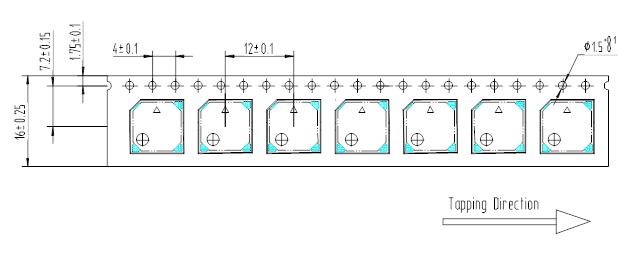

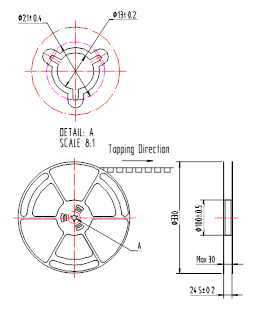

braid packing: see drawing requirements
carton material number: F6-005; outer box size 35*32 * 36cm
inner box material number: F6-054; Inner box size 76 * 45.5cm
carrying tape material number: F6-S85301; Upper sealing tape: F6-SF213
Each carrier plate is packed in a large PE bag and then put into the inner box; PE bag material number: F6-610

shipping mark requirements

inner box:

according to customer order

carton:

according to customer order
